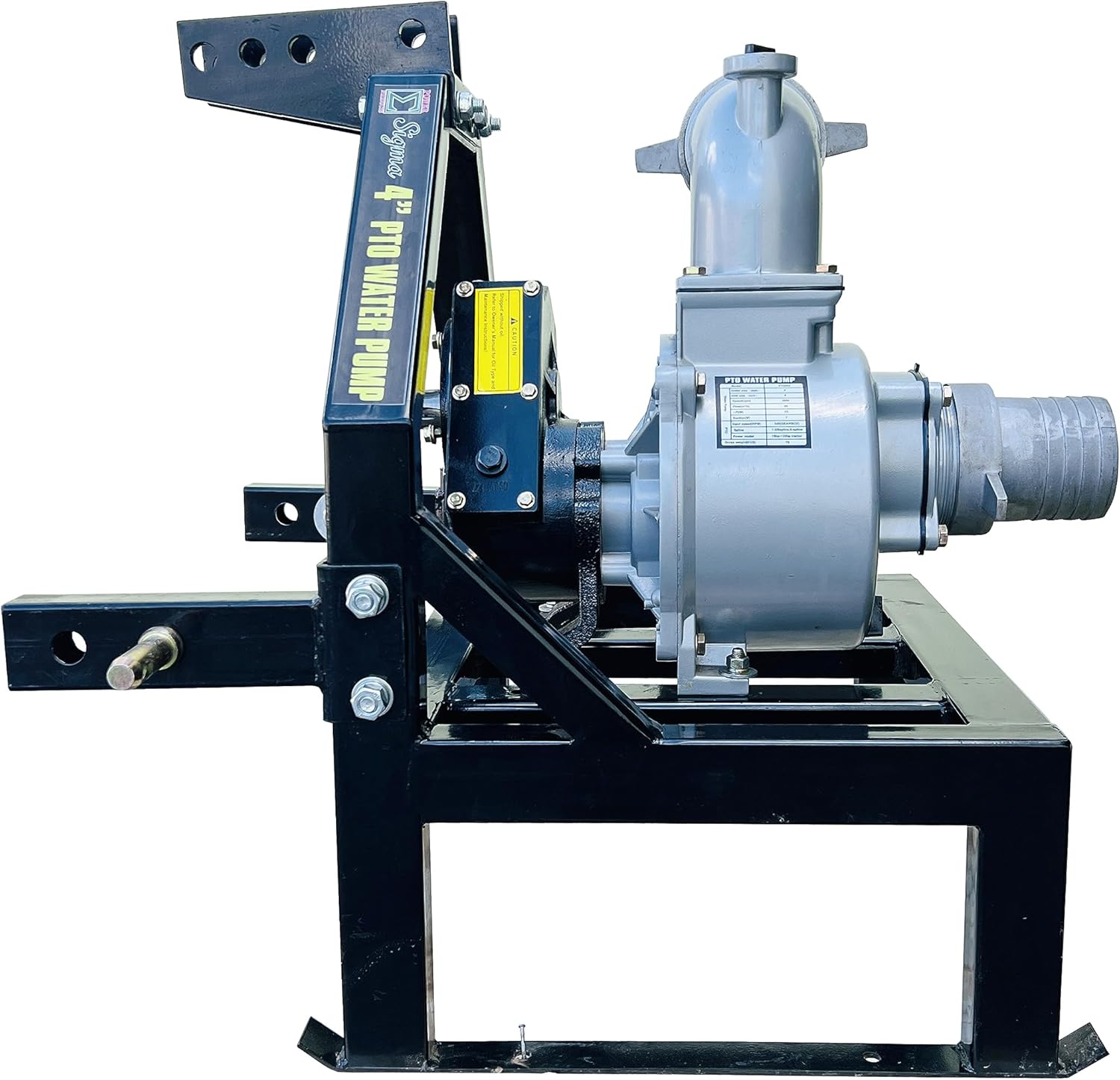

Sigma 4-Inch PTO-Driven Clear Water Pump with 3-Point Hitch & Shaft Gear Drive – Tractor-Powered, 30 PSI Output, 16–20 feet Lift

Brand New High Quality Brand Sigma Tractor-Driven Operated PTO-Powered Water Pump 4" With Gear for Tractor This PTO water pump typically delivers an outlet pressure of around 30 PSI and is designed primarily to draw clear river water into canals. It is not suitable for high-pressure irrigation systems. The lift range is approximately 16 to 20 feet (maximum). Outlet Size：4" Inlet Size: 4" Speed: 3600RPM Flow: 80 cubic meters/ Hour 352 GPM Total Head: 82FT Maximum Suction Lift: 20 FT Pump Gearbox accepts 540 RPM and geared to supply the required 3,600 RPM to the pump and uses SAE 90 Gear Oil Spline: 1-3/8spline 6-spline Tractor HP required is a range of 15HP to 125HP Please note that the Gearbox is shipped WITHOUT oil. Requires approximately 0.79 to 1.06 quarts of SAE 90 gear oil (estimated capacity). Fill oil to the designated oil level line; do not overfill or underfill.

• General Specifications: Outlet Size: 4 inches Inlet Size: 4 inches Operating Speed: 3,600 RPM Total Head: 82 feet Maximum Suction Lift: 20 feet
• The Pump Gearbox is designed to accommodate 540 RPM and is meticulously engineered to transmit the essential 3,600 RPM to the pump. It operates with SAE 90 Gear Oil. Important Note: The gearbox is shipped without any oil included.
• High Flow Rate: PTO water pumps are known for their ability to deliver a high flow rate, ensuring efficient and rapid water transfer for irrigation, dewatering, or other applications. Our pump boasts a flow rate of 80 cubic meters per hour or 352 gallons per minute (GPM).
• Easy Compatibility: PTO pumps are designed to be compatible with a wide range of tractors and power take-off systems, making them versatile and easy to integrate into existing equipment. The required tractor horsepower for our pump falls within a broad range of 15HP to 125HP.
• Our PTO shaft is equipped with a 6-spline tractor end and a rounded implement end, adhering to the standard size of 1-3/8 inches. Its standard length extends to 23 inches.
• Please note: This is a clear water pump, and not a high-pressure pump.
• This PTO water pump typically delivers an outlet pressure of around 30 PSI and is designed primarily to draw clear river water into canals. It is not suitable for high-pressure irrigation systems.
• Before operating, fill the pump with water and add oil to the gearbox. For detailed instructions, please refer to the user manual.
• This pump requires clockwise PTO shaft rotation when viewed from the rear of the tractor.
