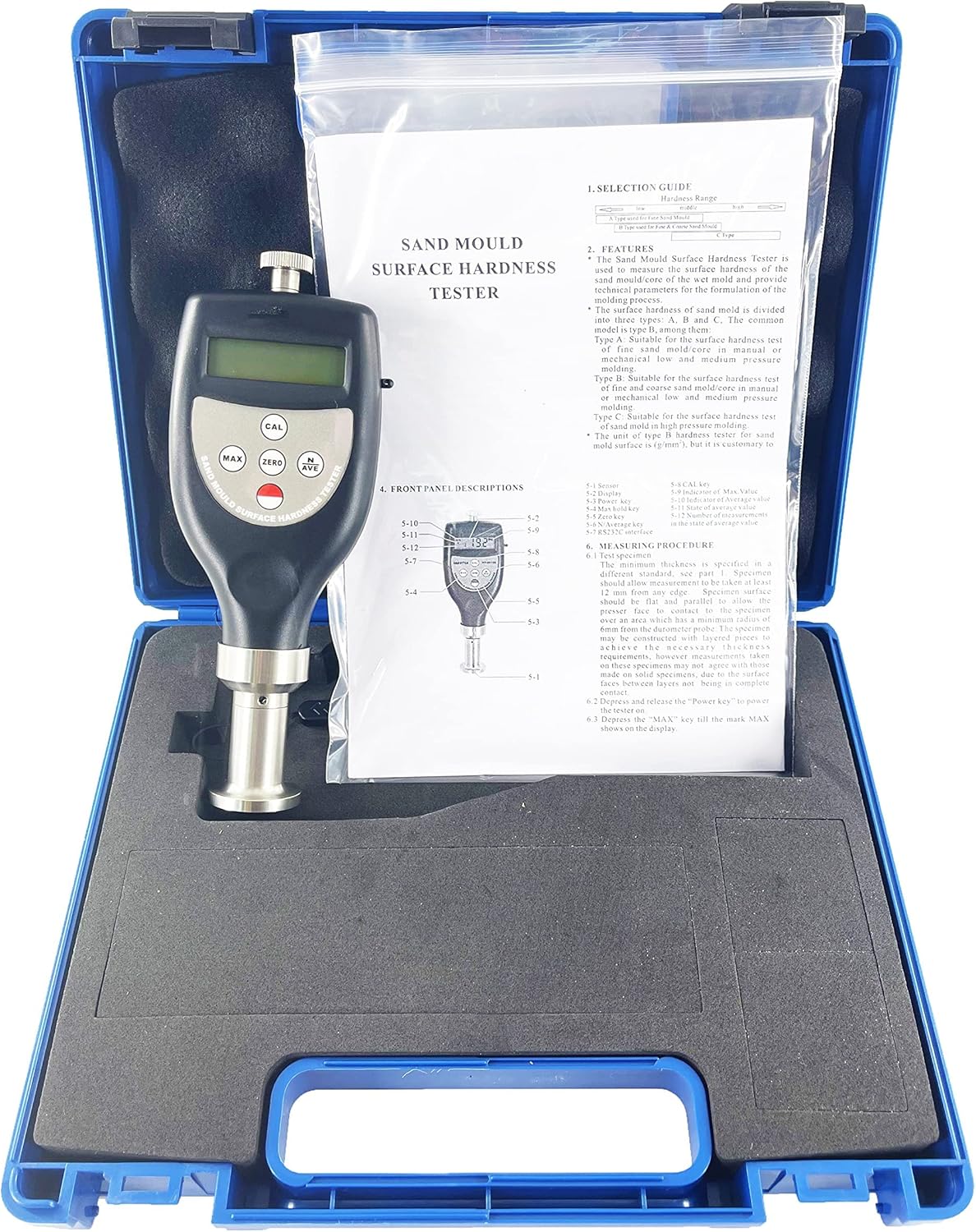

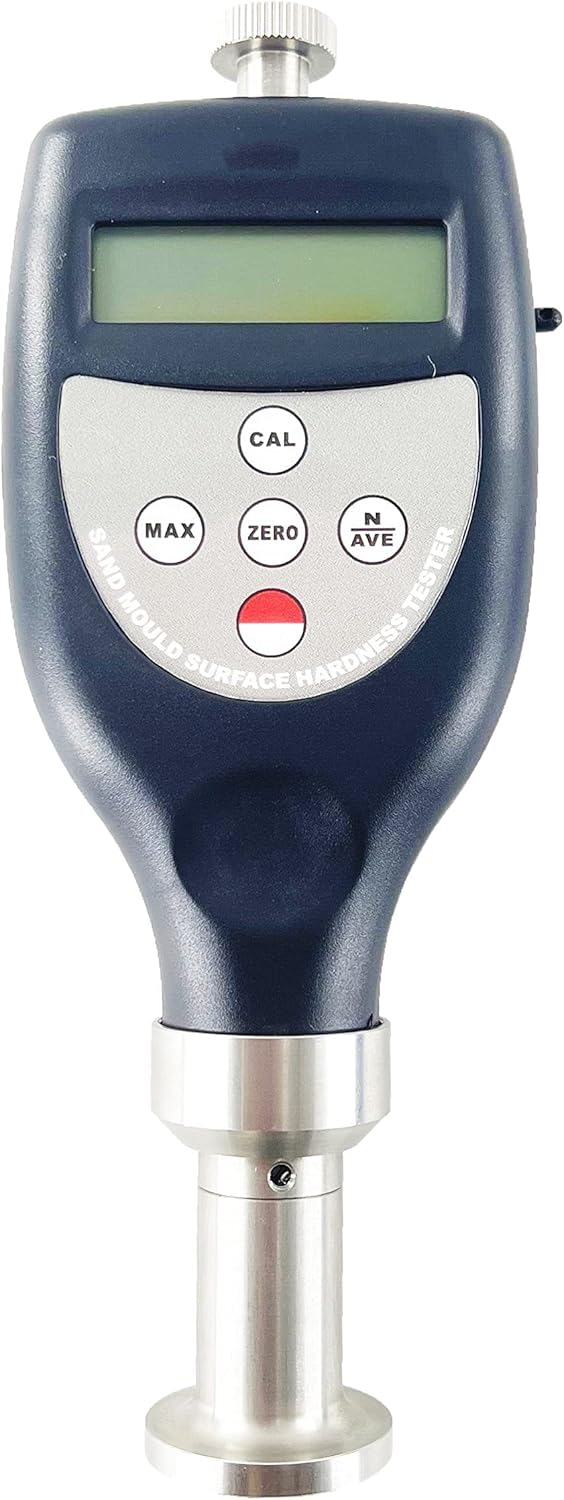

Sand Mould Surface Hardness Tester Meter Durometer For Fine and Coarse Sand Mold/Core in Manual or Mechanical Low and Medium Pressure With Load 980g Pressure Load 50g Spherical R12.7 Indenter

HFBTE Sand Mould Surface Hardness Tester Meter Durometer For Fine and Coarse Sand Mold/Core in Manual or Mechanical Low and Medium Pressure With Load 980g Pressure Load 50g Spherical R12.7 IndenterIntroduction♦The Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process.Feature:♦It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.♦Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.♦The hardness tester for sand mold surface is (g/mm2), but it is customary to use hardness HB instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm2).♦With average calculate function.♦Peak value deposit function.♦Under-voltage alarm function.♦Use USB data output to connect with PC.(Optional Accessories)♦Provide Bluetooth data output choice.(Optional Accessories)Specification:♦Stroke:2.50mm♦Load:980g♦Pressure Load:50g♦Shape and size of indenter:Spherical R12.70♦Unit:HB♦Display:4 digits, 10mm LCD♦Parameters:Tested Result / Mean Value / Max. Value♦Display Range:0H~100HB♦Testing Range:10H~90HB♦Accuracy:≤±1HB♦Resolution:0.1HB♦Battery Indicator:Low Battery Indicator♦Auto Switch Off:√♦Operating:Temperature: 0°C~40°C ; Humidity: <80%RH♦Power Supply:2x1.5V AAA (UM-4) Battery(Batteries are not included during the shipment)♦Dimensions:162mmx65mmx28mm♦Weight:170g♦Standard AccessoriesMain UnitCarrying Case (B04)Operation Manual♦Optional AccessoriesUSB Data Cable with SoftwareBluetooth Data Adapter with Software

• The Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process.
• Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.
• The unit of type B hardness tester for sand mold surface is (g/mm2), but it is customary to use hardness H(A/B/C) instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm2).
• * With average calculate function. * Peak value deposit function. * Under-voltage alarm function.
• ♦Stroke:2.50mm ♦Load:980g ♦Pressure Load:50g ♦Shape and size of indenter:Spherical R12.70 ♦Unit:HB
