RATTMMOTOR Arbor Press J03-0.3A Spring-Loaded Precision Manual Shaft Press, Benchtop Hand Hole Puncher Machine for Metal and Non-Metal Punching, Bending, Stretching, Forming (3KN/0.3T Capacity)
4.7 (17 items)
Limited Time SaleUntil the end
22
43
08
US$94.20 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$62.80
Product details
| Management number | 221706317 | Release Date | 2026/05/03 | List Price | US$62.80 | Model Number | 221706317 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

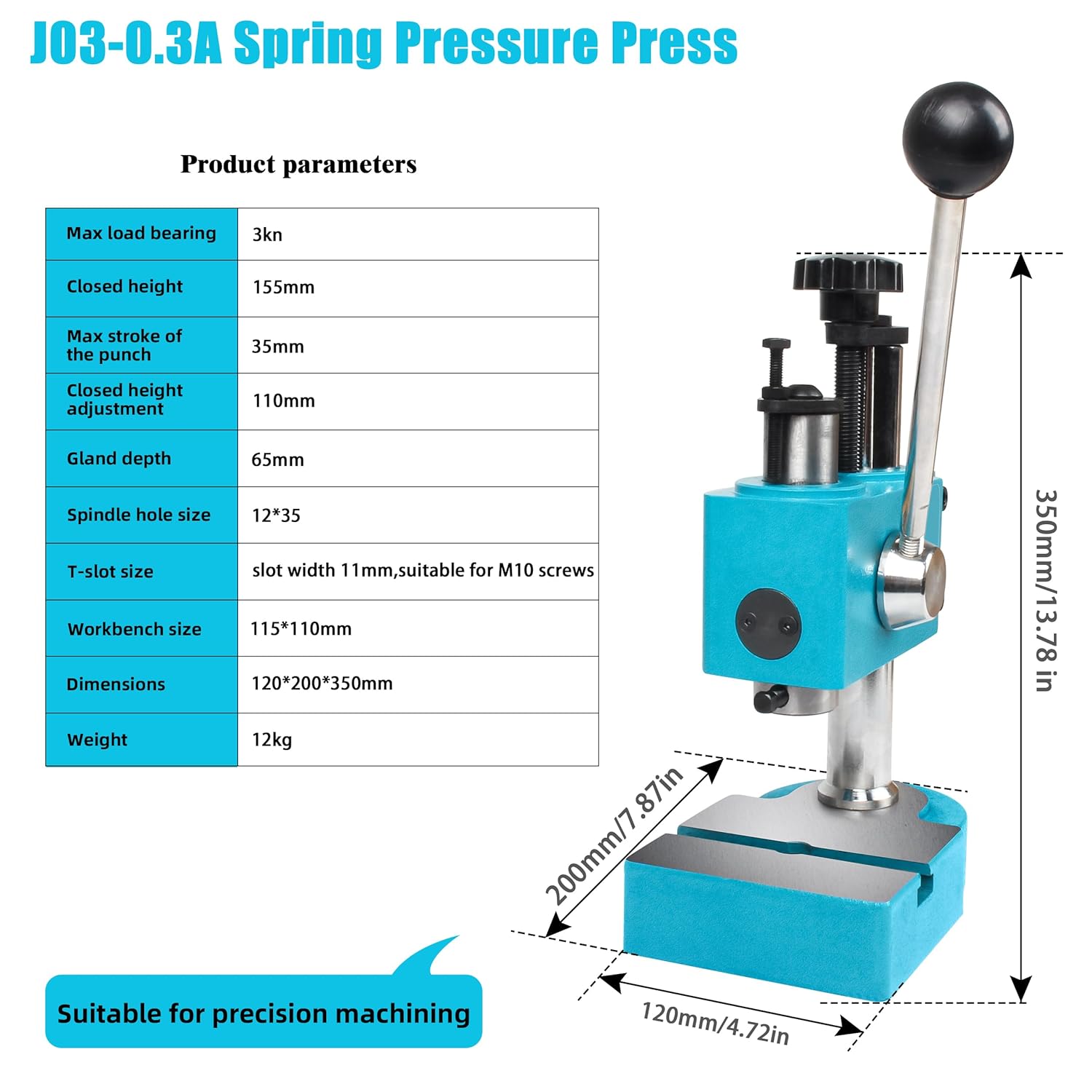

- ✅【Spring-loaded Manual Press】Maximum pressure: 3KN/0.3T; closed height: 155mm; closed height adjustment: 110mm; throat depth: 65mm; die handle hole size: diameter 12*35; T-slot size: suitable for M10 screws, slot width of 11mm; table size: 115*110mm; external dimensions: 120*200*350mm; weight: 12kg.

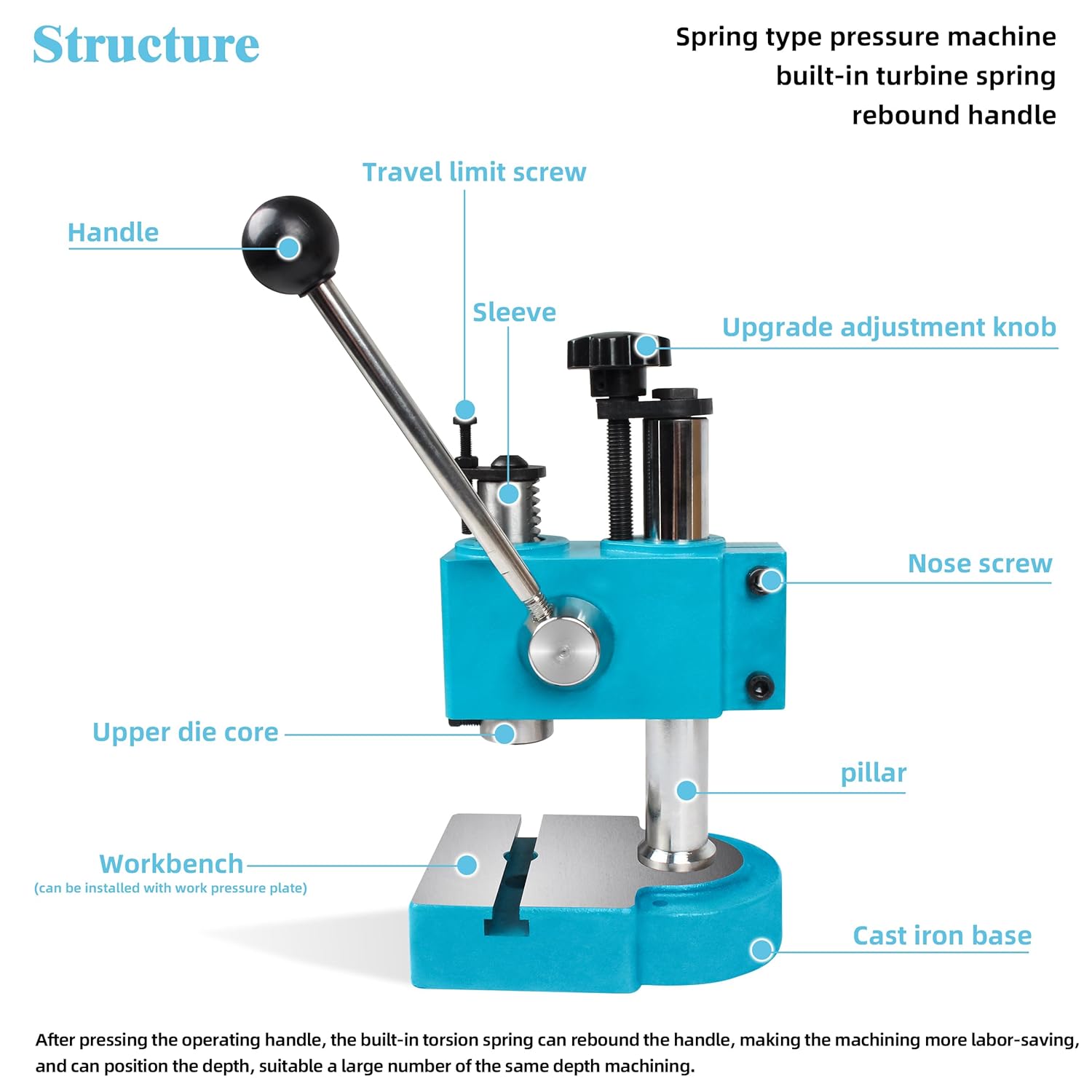

- ✅【Built-in turbine spring】After pressing the operating handle by hand, the handle can be rebounded by the built-in scroll spring, which is more labour-saving for machining, and can locate the depth, which is suitable for the same depth machining in large quantities.
- ✅【Main Features】The upper plane of the base is processed by fine polishing to increase the processing accuracy, and the base is made of cast iron with thickening and weighting design to increase the overall stability of the press.
- ✅【Thickened cast iron base design】Equipped with round column, the main chassis can rotate 360°around the column, increasing the machining range and machining flexibility; Maximum stroke of punch is 35mm, loosen the screws in order to lift the machine head, and lock it after adjusting in place.
- ✅【Powerful functionality with a wide range of product applications】Widely used in electronics, instrumentation, jewellery, zip, small hardware and garment industries, it can shear, punch, drop, bend, shallow stretch, crimp, brocade and form metal and non-metallic sheets, strips and coils.
| Color | Turquoise |
|---|---|
| Model | J03-A |
| Brand Name | RATTMMOTOR |
| Unit Count | 1.0 Count |
| Item Weight | 18 Kilograms |
| Part Number | J03-A |
| Sheet Count | 1 |
| Manufacturer | RATTMMOTOR |
| Material Type | Cast Iron |
| Operation Mode | Manual |
| Included Components | Spring-Loaded Precision Manual Shaft Press |
| Item Dimensions L x W x H | 7.87"L x 4.72"W x 13.78"H |
