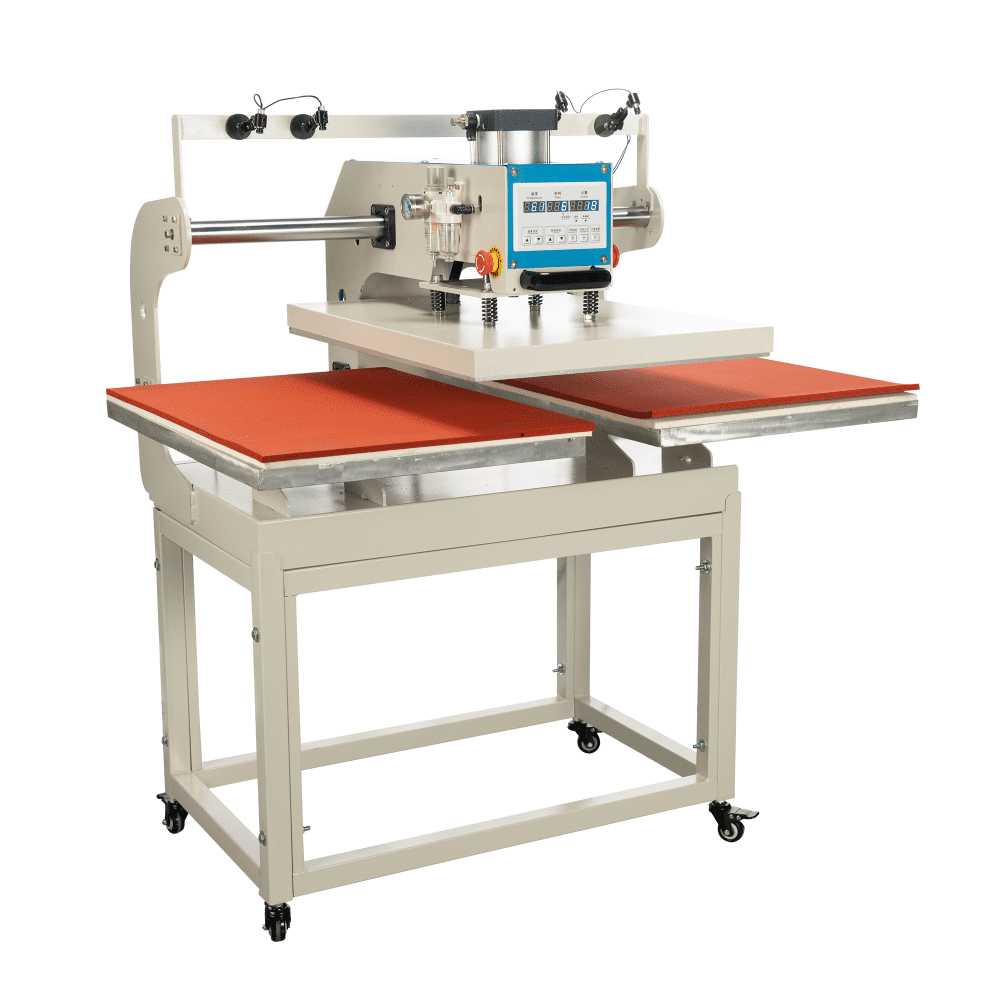

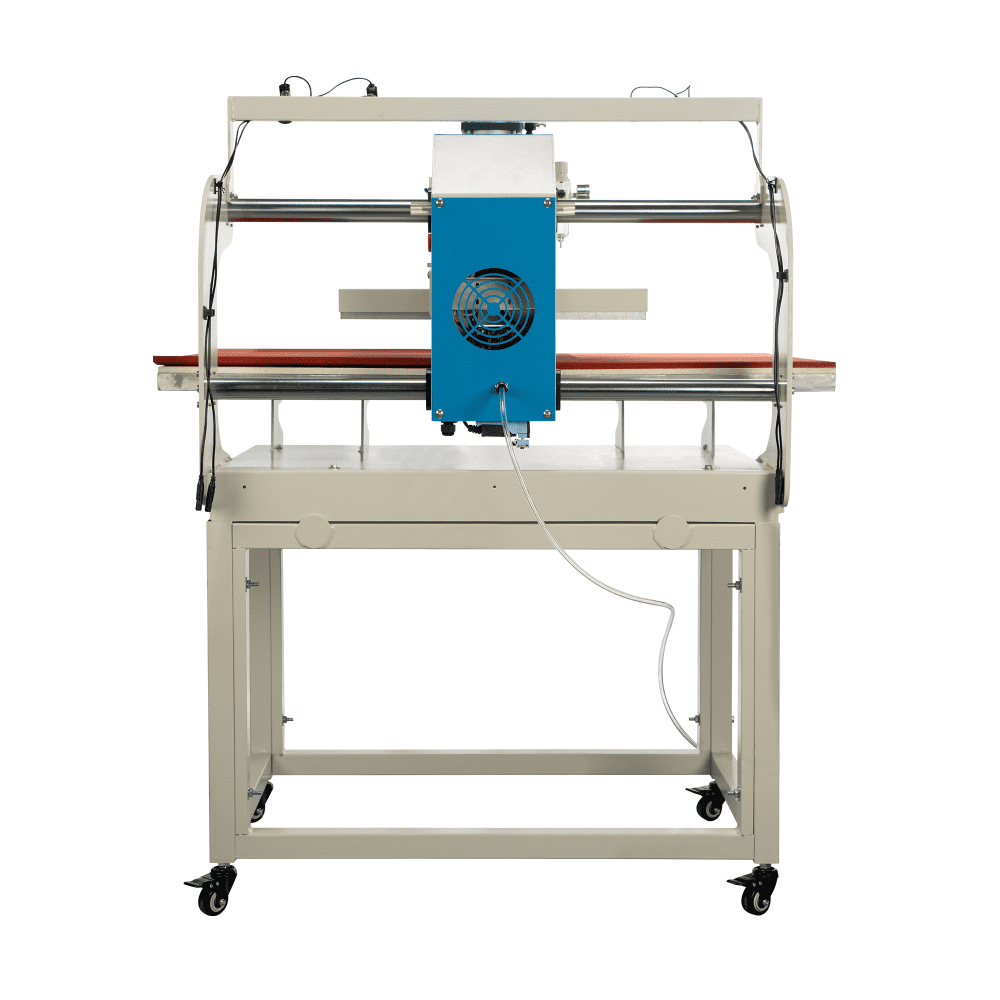

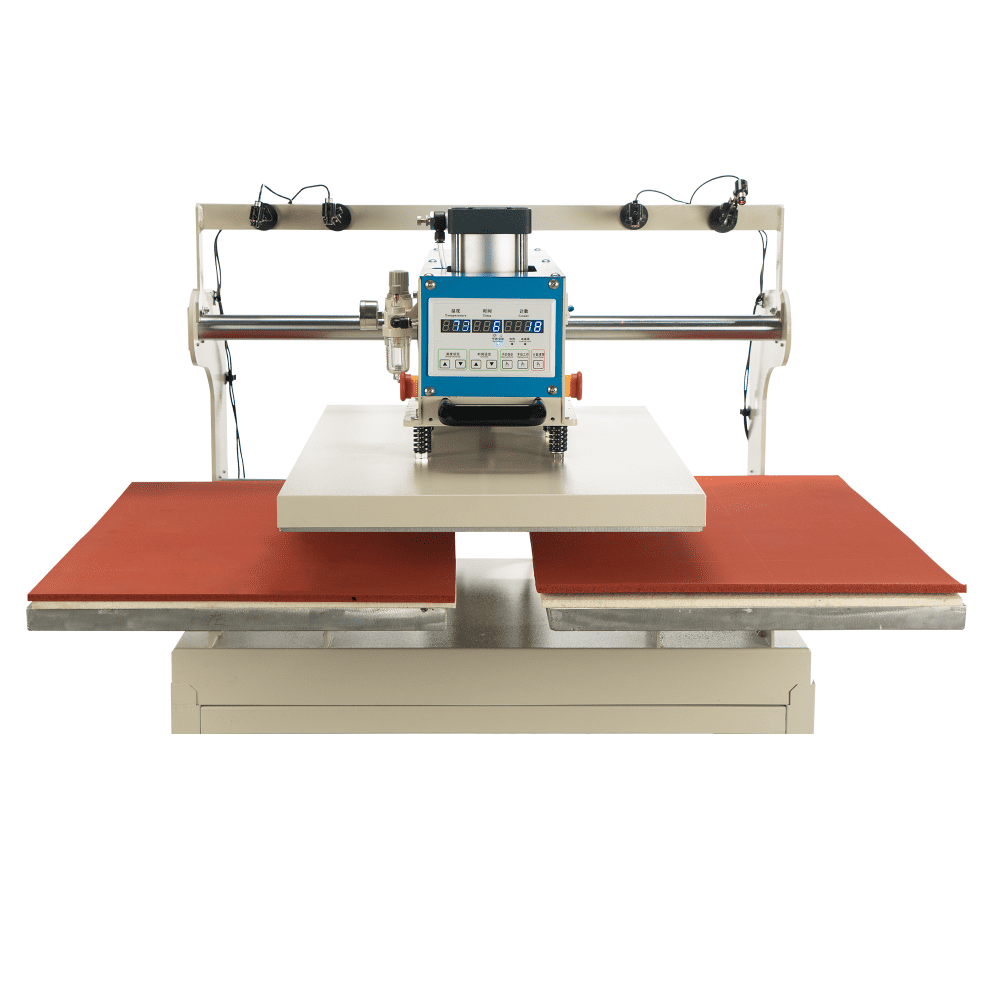

Pneumatic Up Sliding Dual Platen Heat Press Machine with 4 Infrared Positioning, 20" x 28" Heat Plate, White

This advanced heat press machine is designed for high-precision and efficient printing, ideal for a wide range of applications including T-shirt printing, small item customization, and more. With its full digital integrated display control, you can easily set and monitor the temperature, time, and count, saving both labor and time costs. The machine features a high-accuracy signal indication when the pressing process is completed, ensuring perfect results every time. The heating tube and plate are integrated, providing even temperature distribution and short heating times. The pressure can be adjusted up to 0.8Mpa, with a general recommended pressure of 0.4Mpa-0.6Mpa for optimal heat printing. Equipped with an emergency stop button and a pressure adjusting knob, this machine prioritizes safety and convenience. Its stable base frame and brake casters make it easy to move and position, while the lower aluminum plate with a separate stand allows for convenient setup on finished clothes. Experience the efficiency and versatility of this pneumatic heat press machine today!

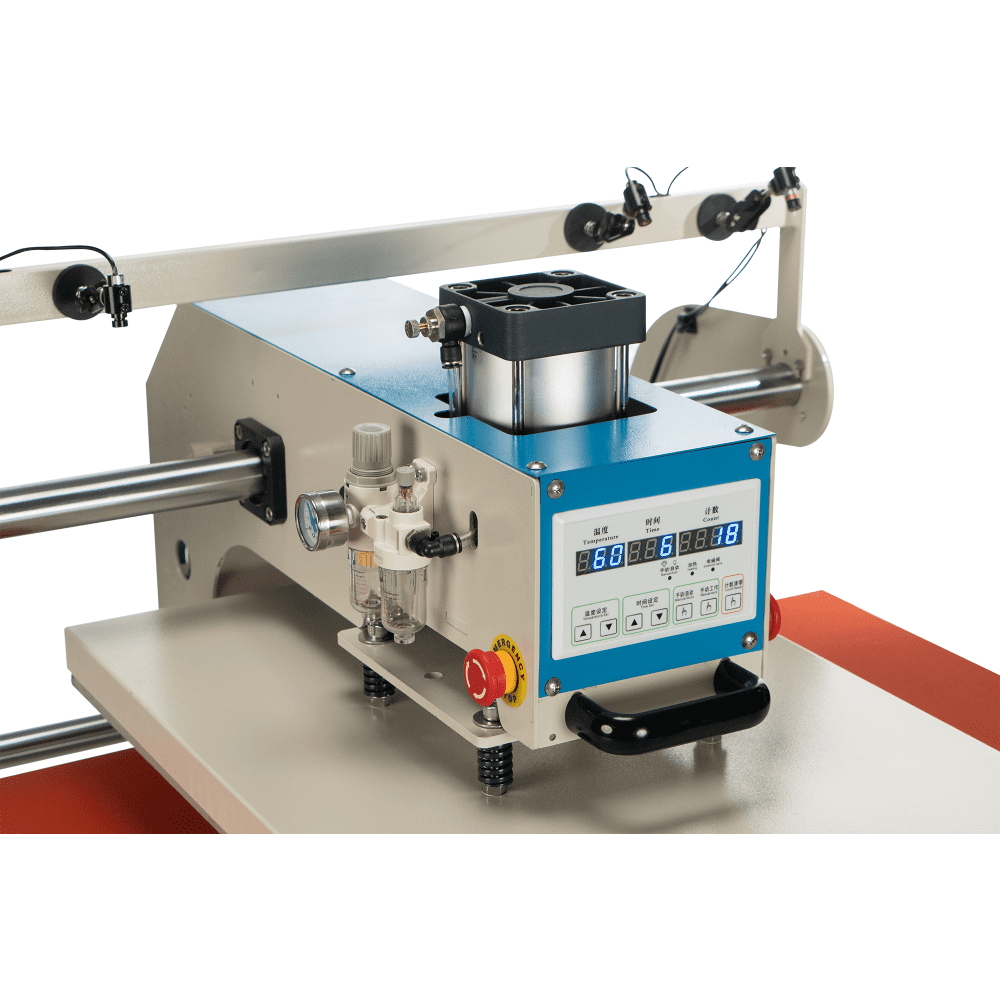

• • Full Digital Control: Integrated display for precise temperature, time, and count settings.

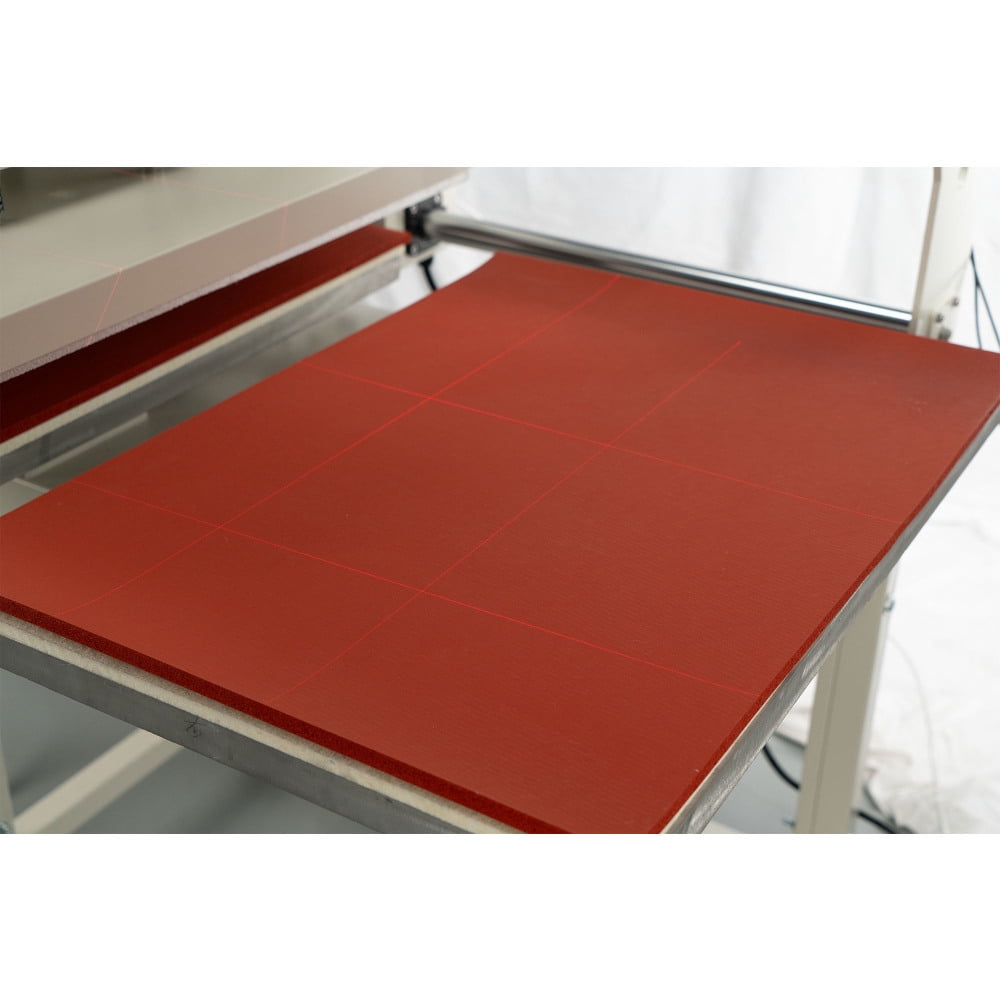

  • Laser Positioning: 4 laser points for precise alignment.
  • Fast & Even Heating: Integrated heating tube and plate for quick, even temperature.
  • Adjustable Pressure: Up to 0.8Mpa, with 0.4Mpa-0.6Mpa recommended for best results.
  • Safety Features: Emergency stop button and pressure adjustment knob for safe operation.
• Product Specifications:
  • Color: White
  • Material: Aluminium
  • Product Dimensions (inches): 44.49L x 37.80W x 57.09H
  • Heat Plate Dimensions (inches): 20.00L x 28.00W
  • Product Weight (lbs): 363.83
  • Voltage (V): 110V/60HZ
  • Power (KW): 4.0
  • Temperature (℃): 0~299
  • Delaying Time (S): 1-999
  • Accept Thickness: Max. 2.36'' Thick Items
  • Range of Application: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
  • Pure Cotton Time: 15s~25s
  • Polyester Time: 40s
  • Chemical Fiber Time: 10s~40s
  • Pearl Board Time: 60s~100s
  • Metal Pendant Time: 60s
  • Mousepad Time: 50s
  • Vitrolite Time: 180s
  • Key Ring Pendant Time: 100s
  • Ceramics Time: 180s
  • Temperature Requirements of Different Materials
  • Pure Cotton: 356℉~428℉ (180℃~220℃)
  • Polyester: 356℉ (180℃)
  • Chemical Fiber: 302℉~356℉ (150℃~180℃)
  • Pearl Board: 356℉ (180℃)
  • Metal Pendant: 356℉ (180℃)
  • Mousepad: 374℉ (190℃)
  • Key Ring Pendant: 356℉ (180℃)
  • Ceramics: 356℉~428℉ (180℃~220℃)
