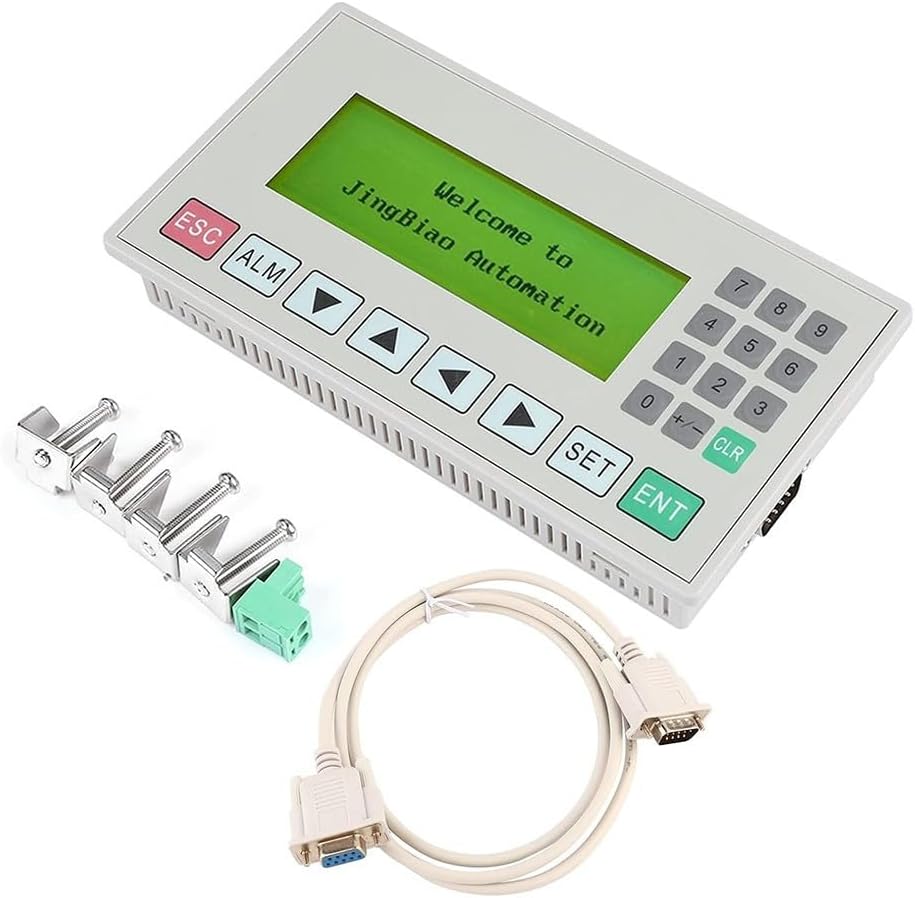

OP320-A Text Display HMI Panel, 3.7 Inch STN LCD Screen with 20 Function Keys, RS232/S485 Communication Port for PLC Control Systems, ABS Housing, IP65 Protection, 12-24V DC Power Supply

Features:* OP320-A is a small human-machine interface, mainly used with different types of PLC (or intelligent control with communication port).* Monitor and change the value and status of PLC internal registers or relays in the form of text or light indicators, so that operators can freely control the equipment.* Take pictures on the computer through the editing software TP200CN, freely enter Chinese characters and set the PLC for address, and download the screen with serial communication.* The communication protocol and screen data can be downloaded to the display without writing a communication program in the PLC.* It has password for Protection and alarm list functions, and displays the current alarm information line by line in real time.* STN LCD display with backlight, 24 English characters x 4 lines, that is, 12 Chinese characters x 4 lines.* Made of imported ABS material, it has good shock resistance and stable working performance.Specifications:Part name: Text displayModel: OP320-AMaterial: ABSDisplay size: 3.7 inchesDisplay type: LCD screenDisplay color: monochromeResolution: 192 x 64 pixelsBrightness: 60cd/m2Processor: 8-bit processorMemory: 64KB Flash ROMInput : keyboard inputCommunication port: COM1: PC RS232, for SPS S485/RS232Function keys: 20 custom keysAllowed power-off time: 20 for msPower supply: 12~24V (V) ±10% <150mAAnti- test: voltage 1500V, p-p pulse cycle 1us, lasting 1SWithstand voltage test: 500 for VAC 1 minuteInsulation resistance: >10MΩFor Impact resistance test: 10~25Hzfor Protection level: IP65Working temperature: 0~50℃Working environment humidity: 20~90%RHPackage contents:1 x OP320-A 1 set x snap-on accessories1 x male to female wire

• [FUNCTION-RICH DISPLAY SYSTEM] The OP320-A features a 7-inch STN LCD display that can show up to 24 English characters or 12 Chinese characters for ACROSS four lines, providing essential information at a glance for effective equipment control.
• [CUSTOMIZABLE USER EXPERIENCE] With 20 programmable function keys, operators can create a personalized interface that meets their specific operational needs. Edit settings easily using the TP200CN software to enhance usability.

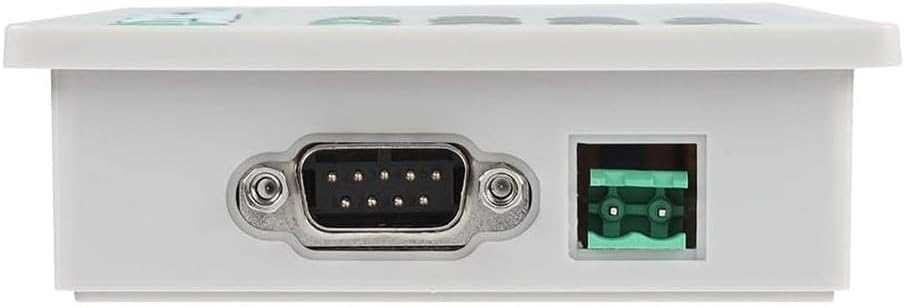

• [EFFICIENT COMMUNICATION PROTOCOLS] This model supports S485/RS232 connections, allowing users to download communication protocols directly onto the display without complicated PLC programming. Enjoy streamlined operations with straightforward connectivity.
• [BUILT TO LAST] Crafted from ABS material, the OP320-A is designed for shock resistance and stable performance in demanding environments. Its IP65 rating ensures protection against dust and moisture exposure.
