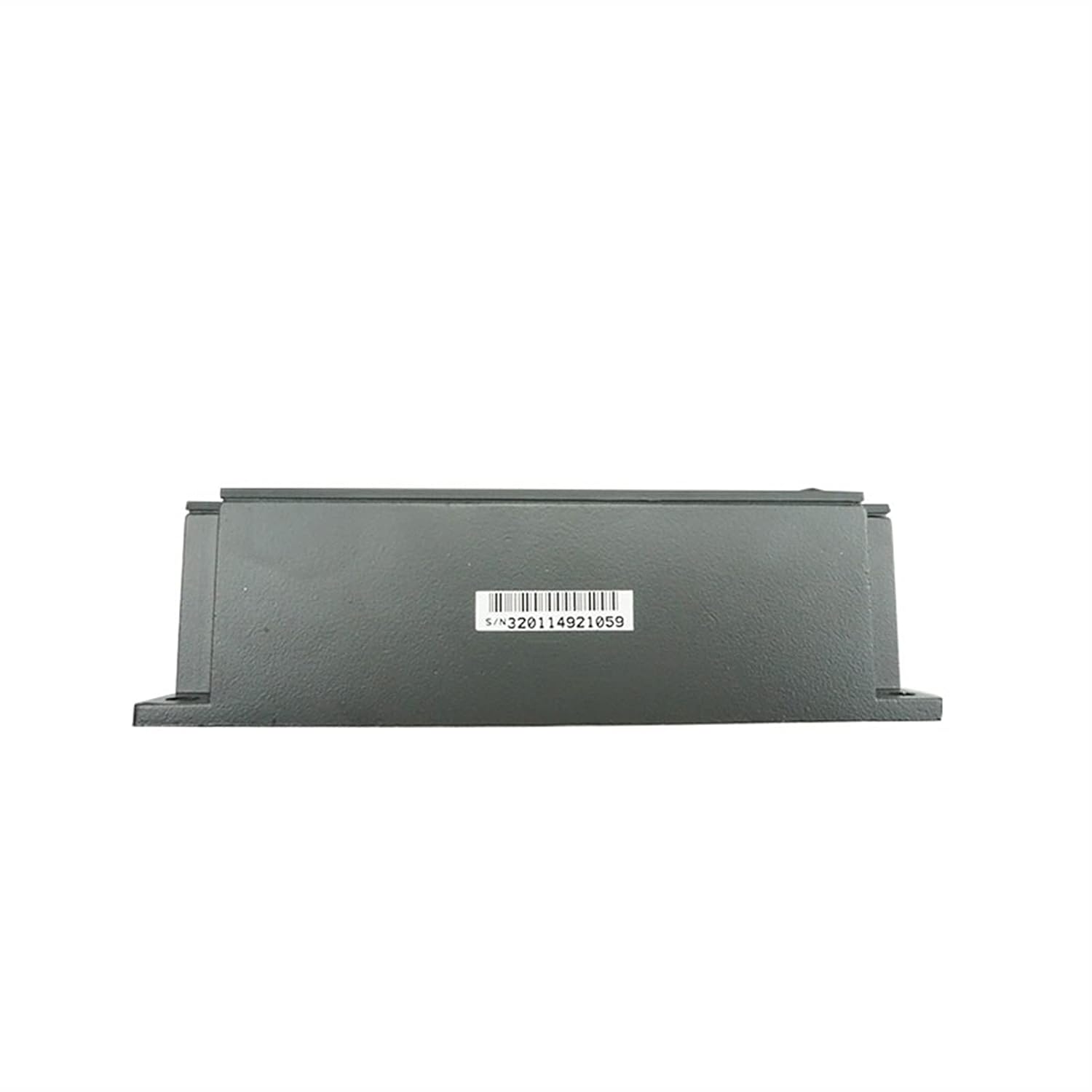

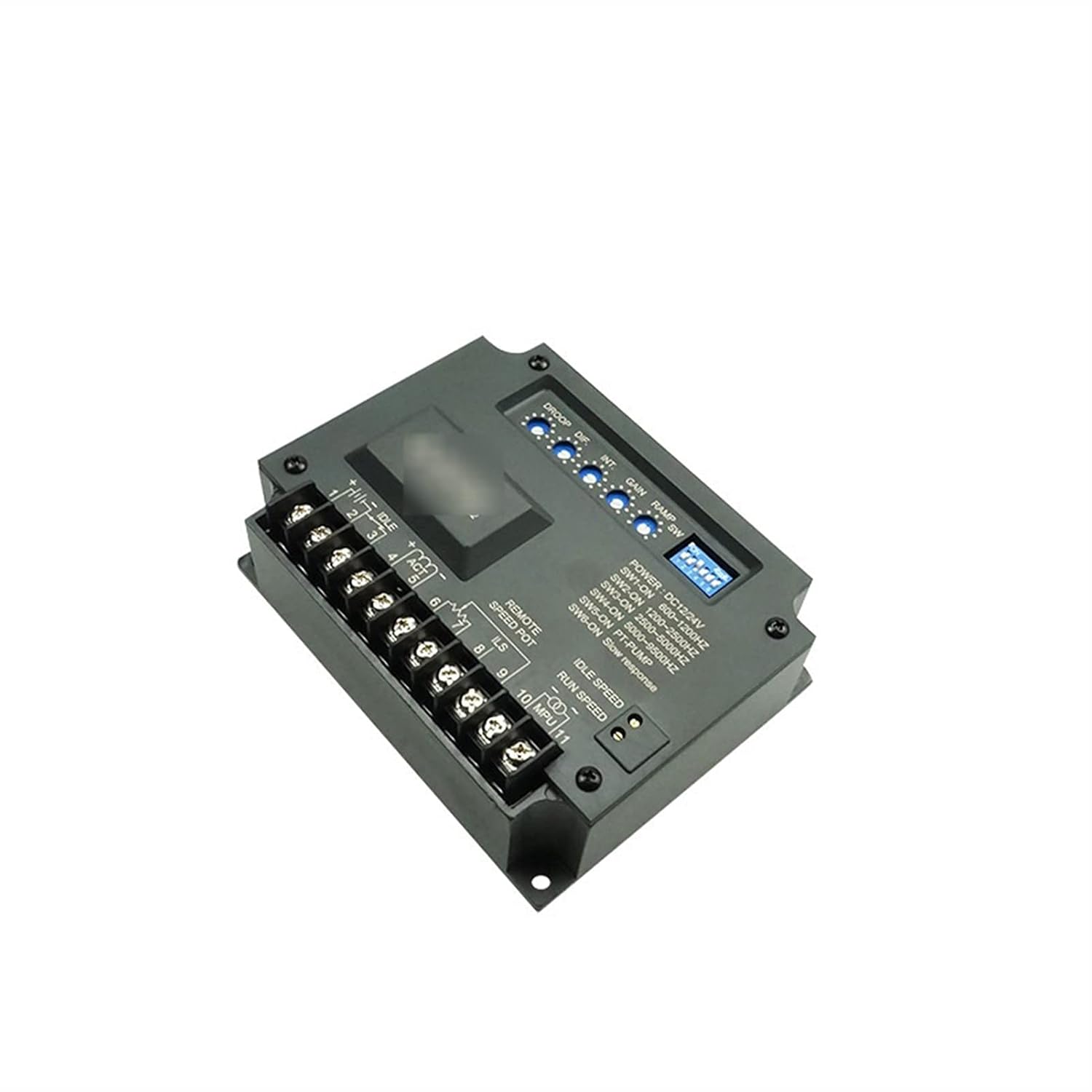

Motor Speed Controller EG3002 Diesel Generator Set Speed Control Board Engine Speed Speed Control Controller

Product DescriptionThe generator electronic governor controller is also called engine speed control or engine governor. It has smoke limit and idle speed control. It is suitable for gasoline generators, diesel generators and natural gas generators. Features Suitable for a wide range of MPU/flywheel frequencies 15 Amp. Maximum output is suitable for all types of diesel and gas engines. High sensitivity and stability under low-frequency changes. Anti-moisture, anti-vibration and anti-rust. Epoxy encapsulated electronic equipment is used for synchronous generators and Automatic parallel PLC control remote speed POT idle speed adjustment and connection specifications Working voltage 10-30 Vdc Output current 0.5 A to 15 A Frequency range 600-9500 Hz (MPU signal) Idle frequency can be adjusted between 30-85% of normal speed With +/- 0.25% at steady state temperature. Stability -40 ~ 85 °C better than +/- 0.5% remote speed adjustment range (2 modes) adjustable range +/- 5% using 5K ohm potentiometer ramp time 3-20 seconds. (Adjustable) Ambient operating temperature -40 ~ 85 °C Storage temperature -40 ~ 85 °C Relative humidity Max. 95% Vibration 3Gs @ 100-2K Hz DIP switch description SW1 ON 600-1200 Hz SW2 ON 1200-2500 Hz SW3 ON 2500-5000 Hz SW4 ON 5000-9500 Hz SW5 ON Used for PT pump type actuator controller DROIN droop rate adjustment ACT output gain adjustment INT. Engine stability adjustment DIF differential speed adjustment RAMP-TIME soft start adjustment SPEED speed adjustment IDLE idle speed adjustment Dimensions 147.0 (L) x 114.0 (W) x 50.0 (H) mm Weight 690 g +/- 2%Package List:Motor Speed Controller x 1

• This speed control board is a brand new high-quality interface module that can provide you with the most stable performance
• The speed control board is made of high-quality materials, flame-retardant, high-temperature resistant, long service life, and safe to use
• Easy to install, with instructions, use immediately after installation, fast and convenient
• Imported electronic components, more stable performance, greatly improving the service life of the engine
