Lathe Linear Scale, Digital Readout Display, Lathe Linear Scale TTL 1μm Digital Readout Encoder DC5V with DB9 Plug (300)

Specification:Item Type: Lathe Linear ScalePlug: DB9Input Voltage: DC 5VAccuracy: 1μmResolution: 0.001 mm/0.00004 inchGrating Pitch: 0.02mmCable Length: Approx. 3 meters / 9.8ft Package List：1 × Grating Ruler 8 × Screw 10 × Gasket 2 × Plastic Gasket 2 × U-Shaped Baffle 2 × Plastic Baffle 1 × L-Shaped Bracket 1 ×Protective Cover Note:1. When plugging or unplugging the grating ruler sensor and the digital display plug socket, turn off the power.2. Add a protective cover as much as possible, and clean up the chips and oil splashed on the ruler in time to strictly prevent any foreign matter from entering the inside of the grating ruler sensor housing.3. Regularly check whether the installation connecting screws are loose.4. In order to prolong the life of the dust‑proof sealing strip, a thin layer of silicone oil can be evenly coated on the sealing strip, taking care not to splash on the scribed surface of the glass grating.5. In order to ensure the reliability of the grating scale sensor, the grating scale surface and the indicating grating surface can be cleaned and wiped with mixture (50% each) at regular intervals to keep the glass grating scale surface clean.6. The grating ruler sensor is strictly prohibited from violent vibration and beating to avoid damage to the grating ruler. If the grating ruler breaks, the grating ruler sensor will fail.

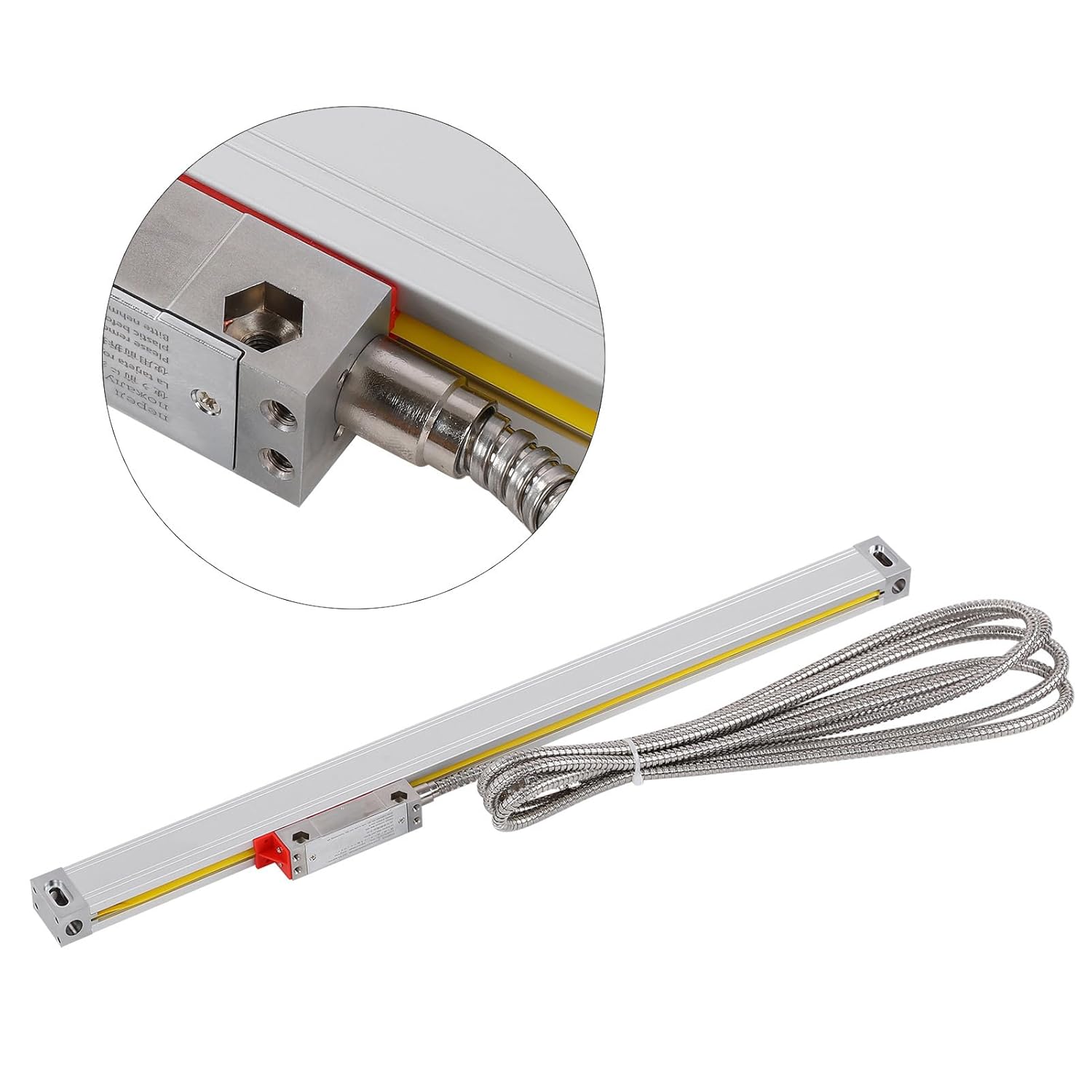

• STAINLESS STEEL HOSE HIGH TEMP PRESSURE stubborn: This lathe linear scale uses a stainless steel metal hose, which resists high temperatures and pressure while having strong anti interference, suitable for harsh lathe working environments
• YELLOW DUST PROOF STRIP GOOD SEAL: This lathe linear scale comes with a yellow dust proof strip that fits closely, providing a good effect and making the scale not easy to damage during lathe operations
• CHIPS STABLE MEASUREMENT: This lathe linear scale adopts chips, ensuring excellent performance stable measurement longer service life and complete functions for accurate lathe positioning
• 19 STYLE STOKES MEET DIFFERENT NEEDS: This lathe linear scale is available in 19 styles stokes for you to choose from; the different stokes can meet various lathe processing and measurement requirements
• DB9 PLUG CABLE CONVENIENT OPERATION: This lathe linear scale is equipped with a DB9 plug and has a 3 meter cable length, so you don’t have to worry about inconvenient operation when connecting to lathe equipment
