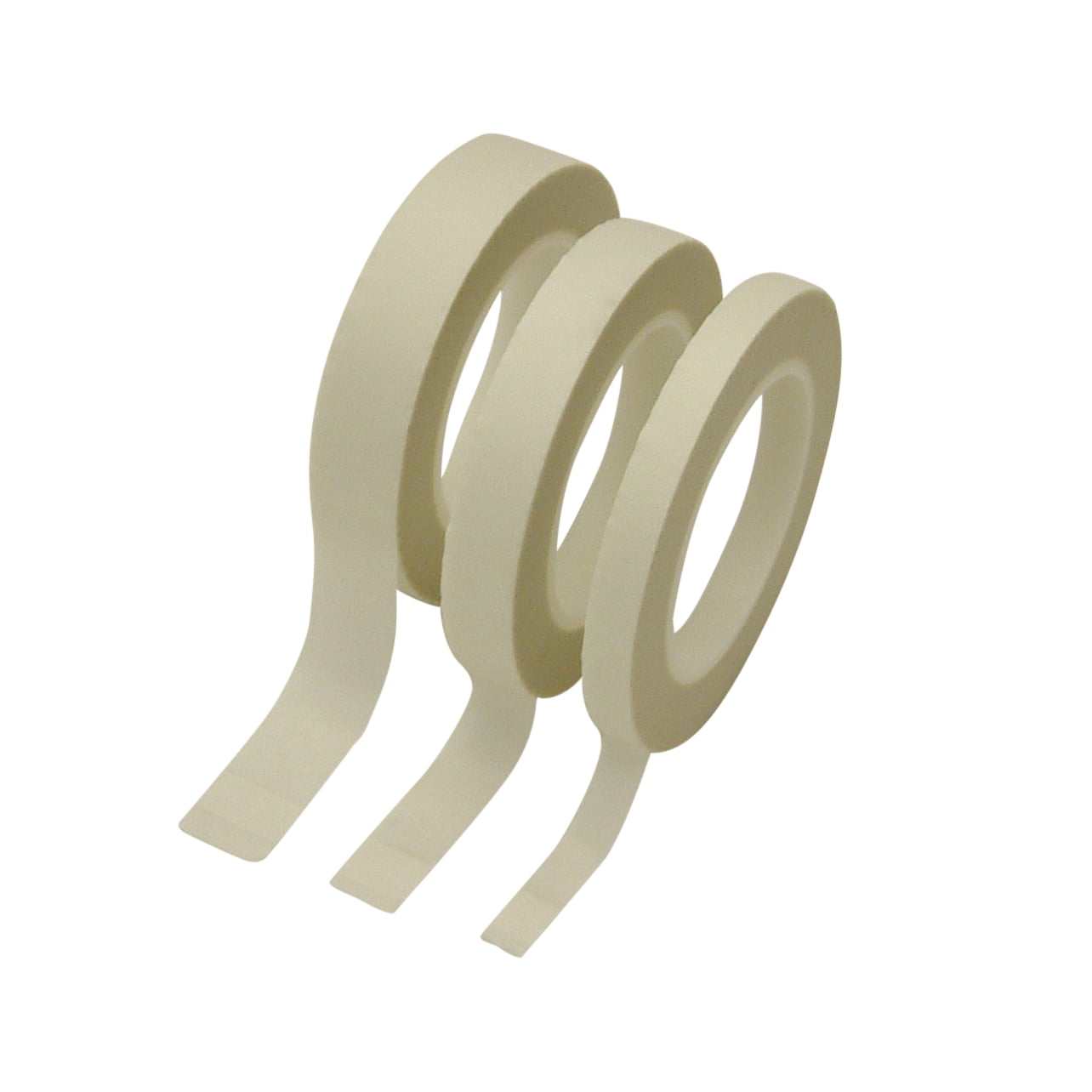

JVCC GC-SIL-7 Electrical Grade Glass Cloth Tape: 1 in x 36 yds. (Natural)

<p><b>JVCC GC-SIL-7 Electrical Grade Glass Cloth Tape</b> is coated with silicone adhesive and is conformable, printable, and chemical &amp; solvent resistant. Designed for use in strategic area masking of areas in thermal and plasma spray applications. Used for insulation of electrical apparatus, coil wrap, and for sealing and bundling of non-electrical applications where flame retardancy or high heat resistance is required (e.g. welding). UL approval insulation class: 180C Class H.</p> NOTES: Sizes shipped will typically be the tape industry standard metric-cut sizes, i.e. 24mm for each 1 inch of nominal tape width ordered (rolls are approximately 5% narrower than the nominal size). This product's actual size is 25.4mm wide. This tape is typically cut to width from log rolls so most sizes ship on non-branded plain white cores. As with any adhesive tape product it is always the user's responsibility to determine that the product is suitable for their intended use; e.g. if you want to remove a product cleanly from a specific type of substrate please test on an inconspicuous area first.<br><br><b>Technical Information</b><br>- Core: 3 inch diameter plastic <br>- Backing/Carrier: glass cloth <br>- Adhesive: silicone <br>- Standards Met: MIL-I-19166C Type 7; UL510 Insulation Class: 200C Class H <br>- Thickness: 7.6 mils (carrier, adhesive) 5.6 mils (carrier) <br>- Adhesion: 35 ounces per inch (to stainless steel test panel) <br>- Tensile Strength: 140 pounds per inch (longitudinal) <br>- Dielectric Strength: 3500 volts <br>- Service/Operating Temperature: -100F to 500F <br>- Elongation: 10 % <br>

• JVCC GC-SIL-7 Electrical Grade Glass Cloth Tape is coated with silicone adhesive and is conformable, printable, and chemical, and solvent resistant.
• Designed for use in strategic area masking of areas in thermal and plasma spray applications.
• Used for insulation of electrical apparatus, coil wrap, and for sealing and bundling of non-electrical applications where flame retardancy or high heat resistance is required (e.g. welding).
• Carrier/Backing: glass cloth. Adhesive: silicone. Thickness: 7.6 mils (carrier, adhesive) 5.6 mils (carrier). Adhesion: 35 ounces per inch (to stainless steel test panel). Tensile Strength: 140 pounds per inch (longitudinal). Dielectric Breakdown: 3500 volts.
• Service/Operating Temperature: -100F to 500F. Elongation: 10%. Standards Met: MIL-I-19166C Type 7; UL510 Insulation Class: 200C Class H. Core: 3-inch diameter plastic.
