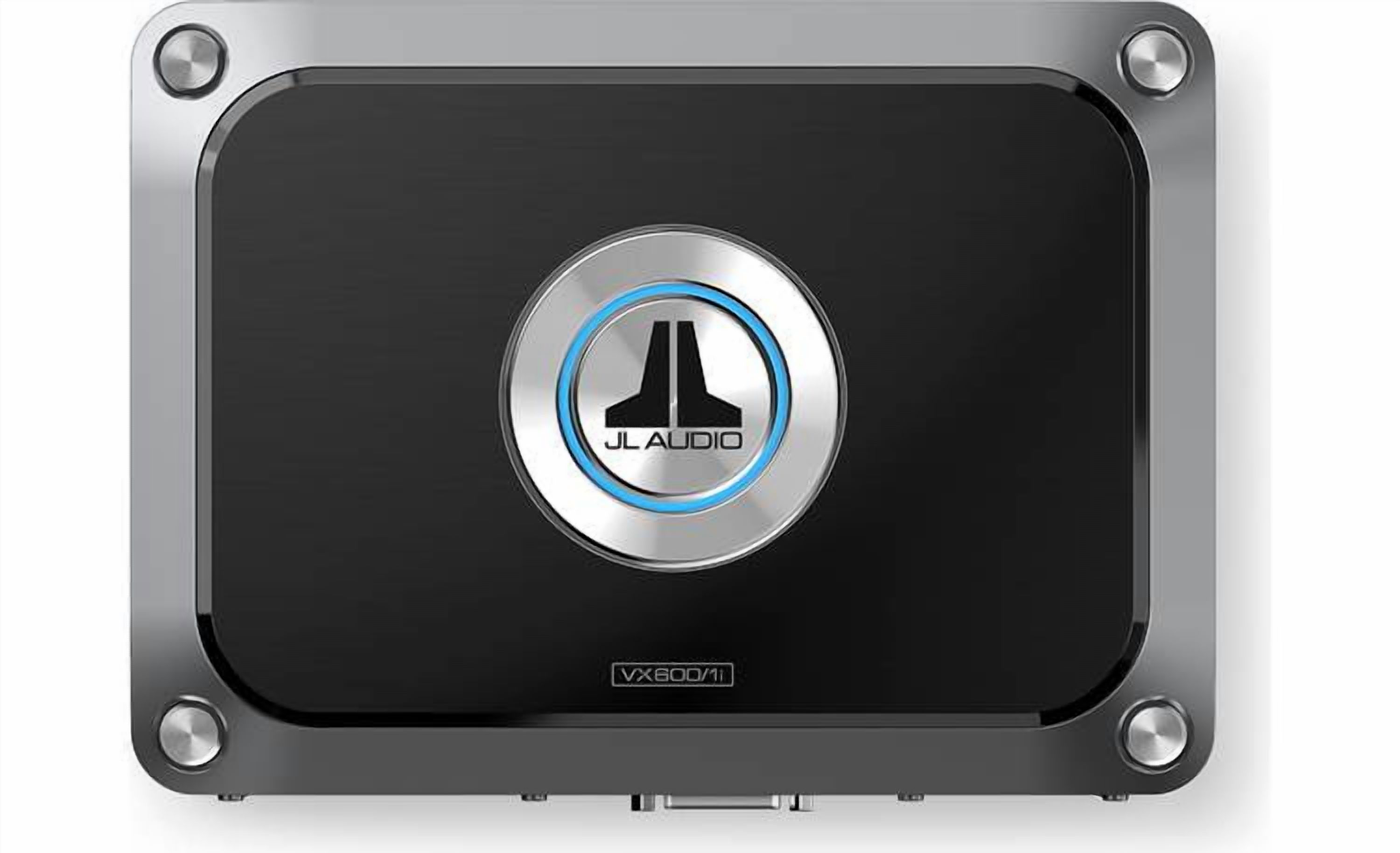

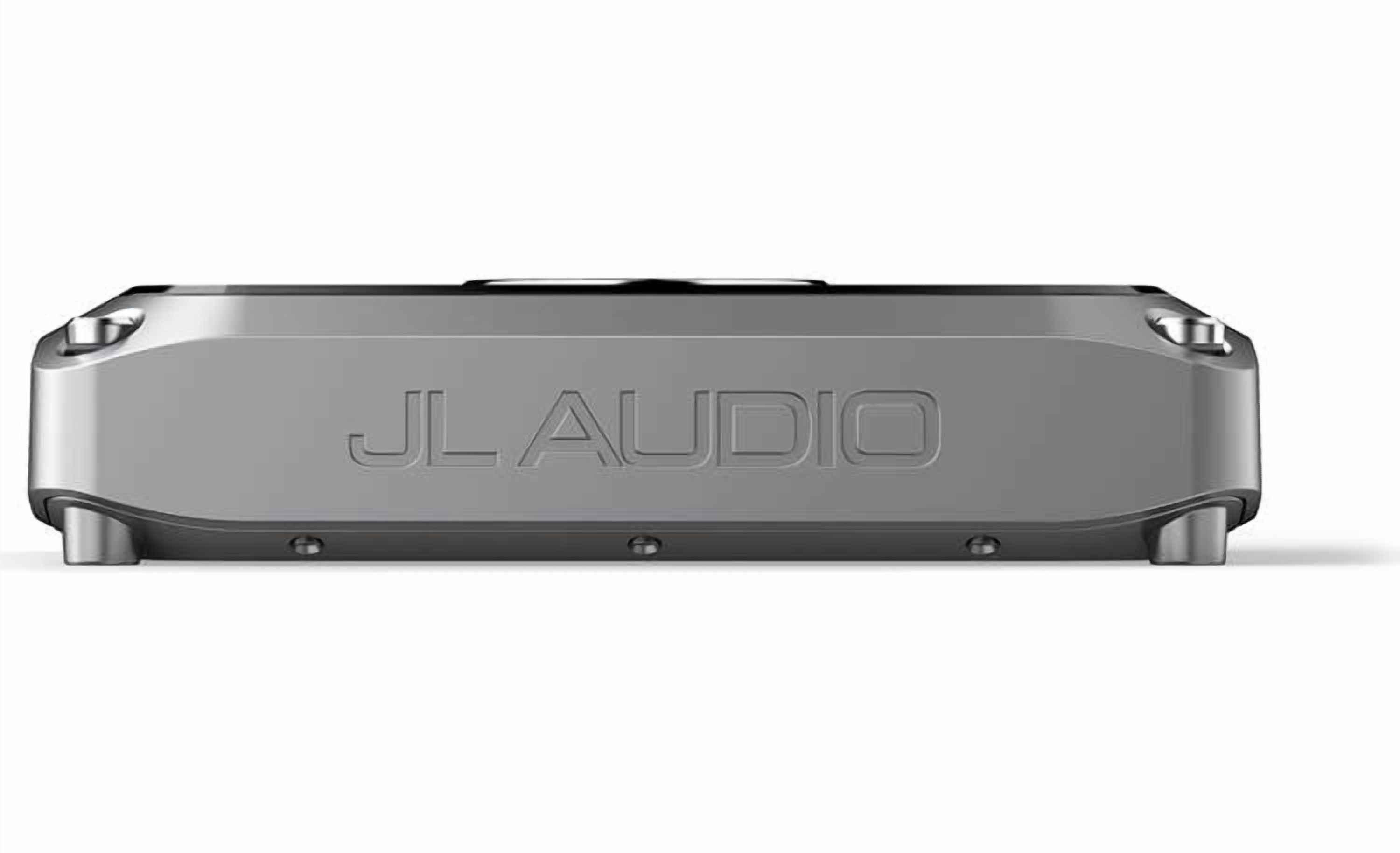

JL Audio VX600/1i Class D Subwoofer Amplifier with integrated DSP, 600 Watts @ 2 ohm / 400 Watts @ 4 ohm

Amplifier plus DSP We've heard a lot of good things about JL Audio's VXi Series amplifiers, which combine JL Audio's latest amplifier technology with powerful signal processing. They also improved the amp's Class D performance by shortening the signal path through the amp, placing the output capacitor banks nearer the outputs, and using up-to-date DirectFET® MOSFET output devices, resulting in higher efficiency, reliability, and audio quality. 600 watts of bass The VX600/1i mono subwoofer amplifier can put out up to 600 watts RMS for your sub, and features 3 channels of digital signal processing. You could set up a system, for example, by routing the signal from the receiver to this sub amp first, and then sending a processed stereo signal on to a separate amplifier for your other speakers. Digital accuracy The 24-bit 96 kHz processing for each channel includes signal routing and mixing, 10-band parametric EQ, time-alignment, high- and low-pass filters, and output level control with 0.1 dB precision. In addition to tuning the audio signal, the processor provides a master clock signal for the Class D amplification, increasing audio accuracy. Remote control only You make all your settings and adjustments from your compatible device running JL Audio's TüN™ software. PC and Mac OS: TüN 3.0 — requires a USB connection (6' cable included with amp) Android and iOS tablets: TüN Mobile — requires Bluetooth connection and the VXi-BTC Bluetooth communicator (sold separately) Android phones and Apple iPhones: TüN Express (for Basic setups only) — requires Bluetooth connection and the VXi-BTC Bluetooth communicator (sold separately)

• Other accessories you may want with this amp
  This VXi amplifier features JLid™ inter-device connection ports for JL Audio's proprietary network system for controlling data. The DRC-205 digital remote control lets you adjust the master volume, subwoofer level, switch between up to six preset tunings, and indicates the amp's status via LED. An optional VXi-HUB network hub comes in handy when you have three or more VXi amps in your system, coordinating all the adjustments and controls. A FiX 82 or a FiX 86 can be used to remove factory sound processing, for higher-fidelity factory system integration for your VXi amplifier.
• Product highlights:
  Featured in our article: Best subwoofer amplifiers for 2025
  mono subwoofer amplifier
  400 watts RMS x 1 at 4 ohms (600 watts RMS at 2 ohms)
  Class D amplifier design with NexD2™ switching amp technology
  Digital Signal Processing:
  24-bit 96 kHz digital processing
  DSP adjustments and settings made with JL Audio's TüN app (PC and Mac) via USB, via Bluetooth (tablets and phones) with BTC Bluetooth option
  input routing and mixing
  adjustable gain controls with clip indication
  fully adjustable high-pass, low-pass, and bandpass filters
  selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
  10-band EQ
  phase and polarity control
  time alignment in 0.01 ms (1/8") increments

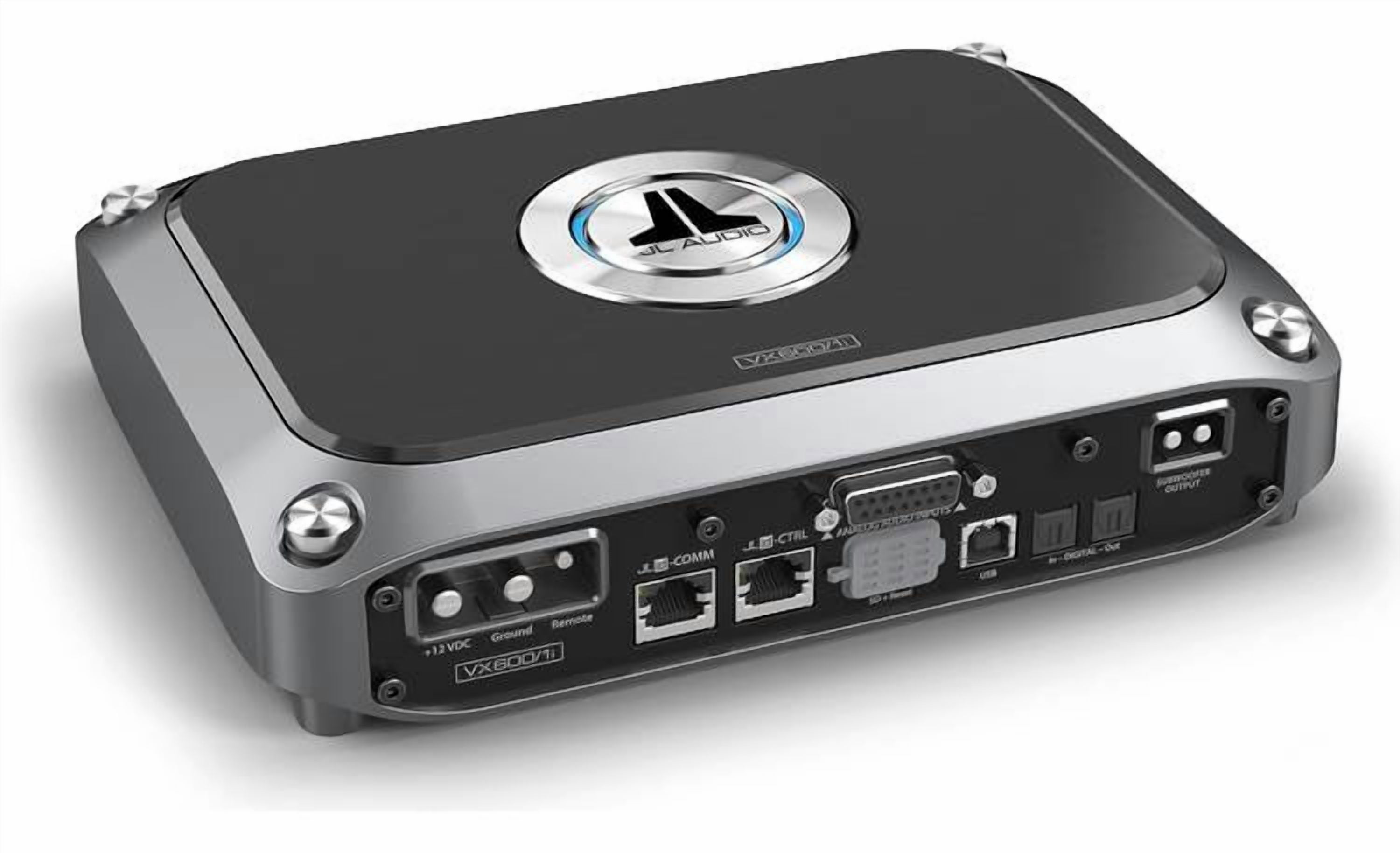

  Connection Features
  differential-balanced inputs eliminate noise coming from your vehicle's electrical system
  preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
  high-level inputs — up to 16 volts RMS (about 60 watts)
  DC offset or signal sensing auto turn-on eliminates need for remote lead
  2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out)
  2-channel analog preamp output (4V RMS)
  JLid™ connections for optional Network Hub, Bluetooth Communicator, and Digital Remote Control
  USB connection for device running TüN app (6-foot cable included)
  wiring, fuse, and hardware not included with amplifier
  4-gauge power and ground leads and a 50-amp fuse recommended
  9-1/16"W x 2-1/8"H x 6-3/4"D
  warranty: 2 years
• What's in the box:
  JL Audio VX600/1i owner's manual


  If you need assistance accessing this owner's manual, please give us a call.
  Monoblock amplifier
  Power connector
  14" Analog Input harness (15-pin D-Sub/4 RCA)
  Subwoofer output connector
  18" Speaker wire loom
  "Sub" wire label
  6' USB cable (Type A USB on one end and Type B USB on other end)
  4 Corner caps
  Corner cap tool
  2 Silver thumbscrews
  2 Black hex cap machine screws
  2.5mm Hex wrench
  3mm Hex wrench
  JL Audio logo badge
  Connection Guide
  Registration card
•
