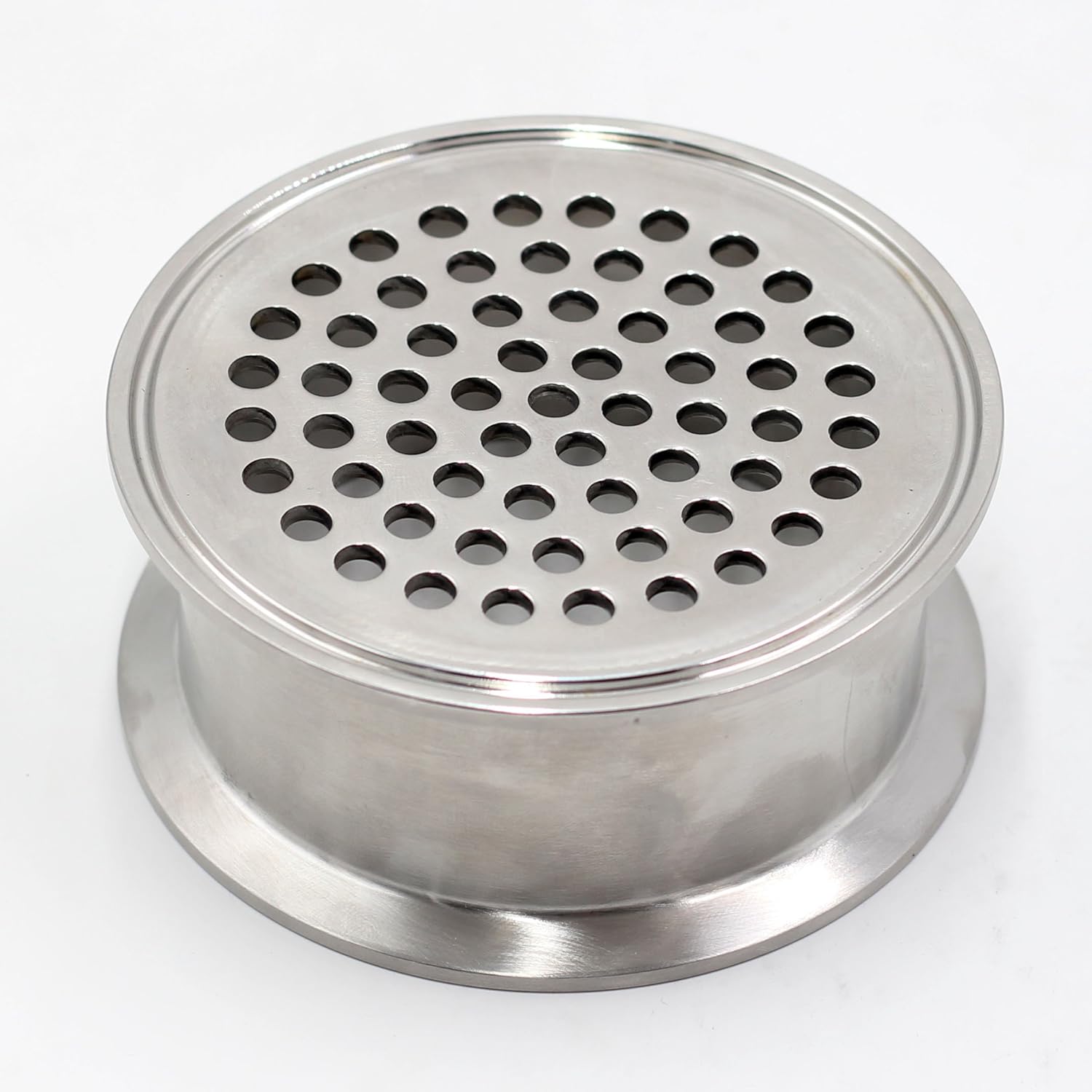

HFS(R) 4" Tri Clamp Filter Plate with 6mm Pore Hole, Bottom Weld, Stainless Steel 304, High Pressure Sanitary Fitting

Specification Connection Type: Tri Clamp Connection Size : 4" Hole Size (mm): 6 Filter Plate Height (in): 2 Material: Stainless Steel 304 Operating Temperature: -58°F~392°F Feature The HFS 4" Tri Clamp Filter Plate is designed for high-pressure sanitary fittings and is made from premium 304 stainless steel, ensuring durability and resistance to rust and corrosion. This filter plate features a perforated design with 6mm holes, providing a rigid surface for tri clamp gaskets to rest against, preventing screen displacement even under increased pressure. Ideal for various filtration processes, it can be used with ashless filter papers, stainless steel ball bearings, or steel wool to enhance filtration efficiency. Suitable for a wide range of media including water, gas, and oil, it operates effectively within a temperature range of -58°F to 392°F. For added convenience, it comes packed in a labeled plastic bag for easy organization and storage.

• [Size]: Fits 4" Tri Clamp, bottom weld filter plate, with 6mm holes, 2" height.
• [Quality Materials]: The HFS bottom weld filter plate is made of high-quality 304 stainless steel, which is durable, stable, rust and corrosion-resistant, and good for long-term use.
• [Precise Design]: Tri Clamp support spools have a rigid surface across the face of the spool, called a perforated plate. This perforated plate has 6mm holes and is in the same plane as the edge of the spool, creating a face for tri clamp gaskets to rest against. When filtered sediment accumulates at the face of the screen gasket, increasing pressure, the perforated plate holds the gasket in place and prevents any screen displacement.
• [High Working Temp. & Wide Range of Applications]: The 4 inch filter plate can be used simultaneously with ashless filter papers or any other filtration media like stainless steel ball bearings or steel wool to increase surface area and filtration level to remove fats, lipids, waxes, and other materials during the extraction process. It is suitable for different media, including water, gas, and oil, with a working temperature range of -58°F to 392°F.
• [Convenient Organization and Storage]: Packed in a plastic bag with a label.
