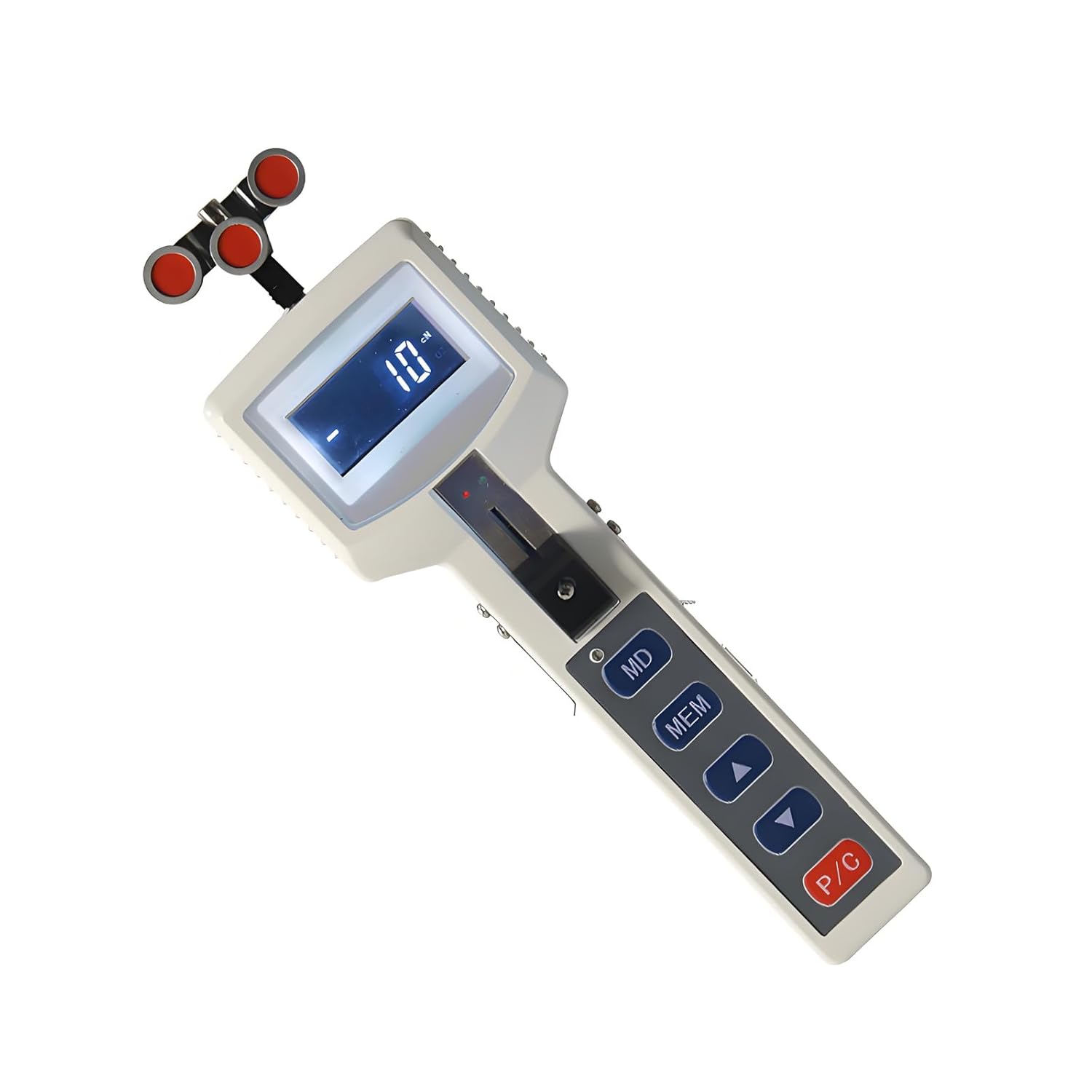

Handheld Digital Cable Tension Meter - Precision Force Gauge for Wire, Cable & Fiber Industries, Measuring Range 100~5000(cN), with Data Export Function

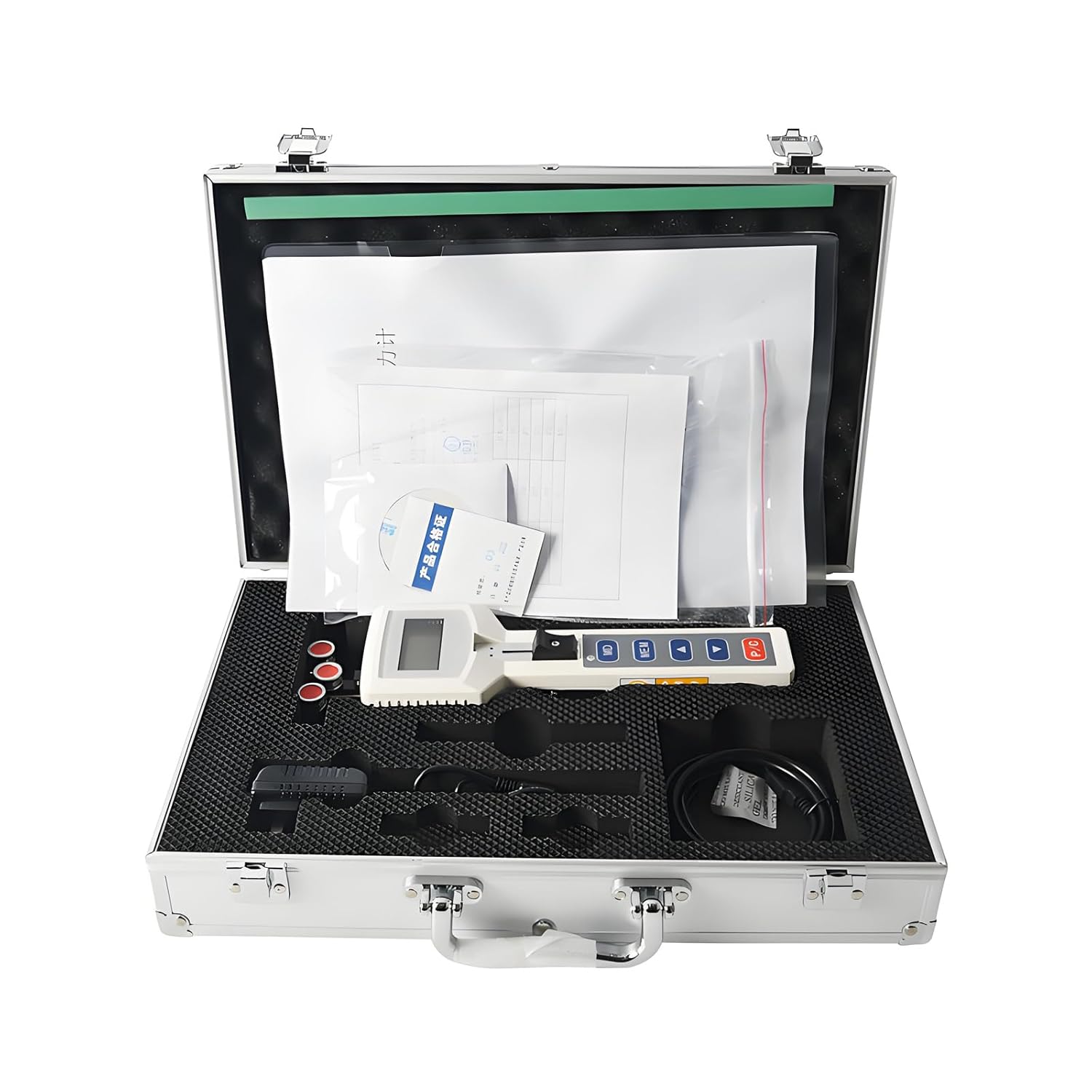

AZSH handheld digital tension meter is a portable electronic digital measuring instrument. It can measure the tension force of filamentou, linear material,widely used in wire and cable,tensile chemical fiber ,metal wire,carbon fiber and other industries. It can measure the tension force and process data accurately. Specifications Model: AZSH-5000cN Tension range: 50~2500.0（cN） Measuring head width (mm): 116 Calibration material textile PA monofilament: φ0.60~1.20mm Size (mm) : 270*118*55 Net weight (g) : About 640g Power supply: 3.7V lithium battery*2 International tension unit: 1CN=1.02g=0.01N; 100N=10.2kg=10000cN Packing list 1 x Digital tensiometer 1 x Instruction manual 1 x Certificate 1 x Inspection certificate 1 x Desiccant 1 x USB data cable 1 x 12V charger (big head) 1 x Online software (CD)

• Tree mode: real-time, hold and peak
• Multiple units such as cN, gf, OZ, Kgf, N, and lb can be set
• Accuracy is 0.5% of full scale
• It can measure the tension of 10 different materials accurately
• With USB communication function
• It has a thickness adjustment function
• Easy to store, can store 41 group data
