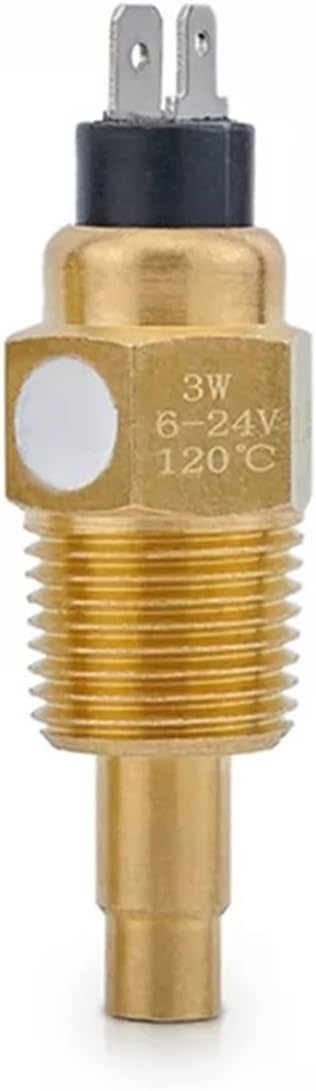

GM50C GM50CR Engine Digital Display Multifunction Meter CAN RS485 Port Remote Monitoring Multi-Function Panel Genset Part(Oil Pressure Sensor)

GM50C series configuration and instructions Ver1.5Brief Introduction:There are 2 Models under GM50C series.GM50C:Engine parameters gathered through Can Port and inside J1939 protocol, Display ECU alarm code,Protection Alarm, Engine speed control function,value set by front face buttons.GM50CR:Based on GM50C functions, RS485 port is added, parameters can be monitored and set directly through PC, besides, the remote vice meter can monitor the main meters.ParametersPress "PROG" for 4 sec, loose it when "P-00"displayed, which meanssystem comes into setting page and display the first option. Press "+"or"-"to choose the options and press "PROG" to set.Press "+"or"-"again to set the right value. Then press "PROG" to revert back to last layer and press "PROG" again for more than 4 sec to save the value .Notes: it is valid for the changed value once adjusted.Features:With multiple protection functionsHighlight digital tube: display the measured valueCan display ECU loss alarm fault codePanel keys to set and modify system parameters with data remote monitoring functionThe engine speed can be controlled by the buttons on the panelParameter display:Engine speed;Engine oil pressure;Engine oil temperature;Engine cooling water temperature;Battery voltage;Cumulative working timeProtective function:Overspeed protection;Low oil pressure protection;High oil temperature protection;High water temperature protection;Low battery voltage alarm;ECU alarms.Specification :1. DC Supply: 8-36 V continuous;2. Consumption Power: MAX 1.5 W;3. Battery Voltage Accuracy: deviation±1%;4. Accumulation Time :0-999999Hours;5. Min Time Record :0.1Hours;6.Alarm Output: Neg-output, Max DC1A;7.Operation Temperature:-30-65;8. Storage

• WIDE APPLICATION: The controller module is specially designed for starting, stopping, parameter monitoring and fault monitoring of , gasoline and gas generator sets
• FUNCTIONS: The generator controller has manual control and automatic control functions, it can control the automatic start and stop of the generator set through the remote start , which is suitable for stand alone automation
• HIGH RESOLUTION: The generator automatic controller uses high resolution LCD to display the relevant parameters of the generator set, which can display multiple current fault states at the same time, and can effectively implement and shutdown when the generator set is not working properly
• CUSTOMIZED LANGUAGE INTERFACE: The generator control module has a built in display interface such as simplified Chinese, English, etc. and the language interface can be customized according to your working needs
• PARAMETER ADJUSTMENT: All parameters of the intelligent genset controller can be adjusted through the buttons on the controller panel,which is very convenient to operate
