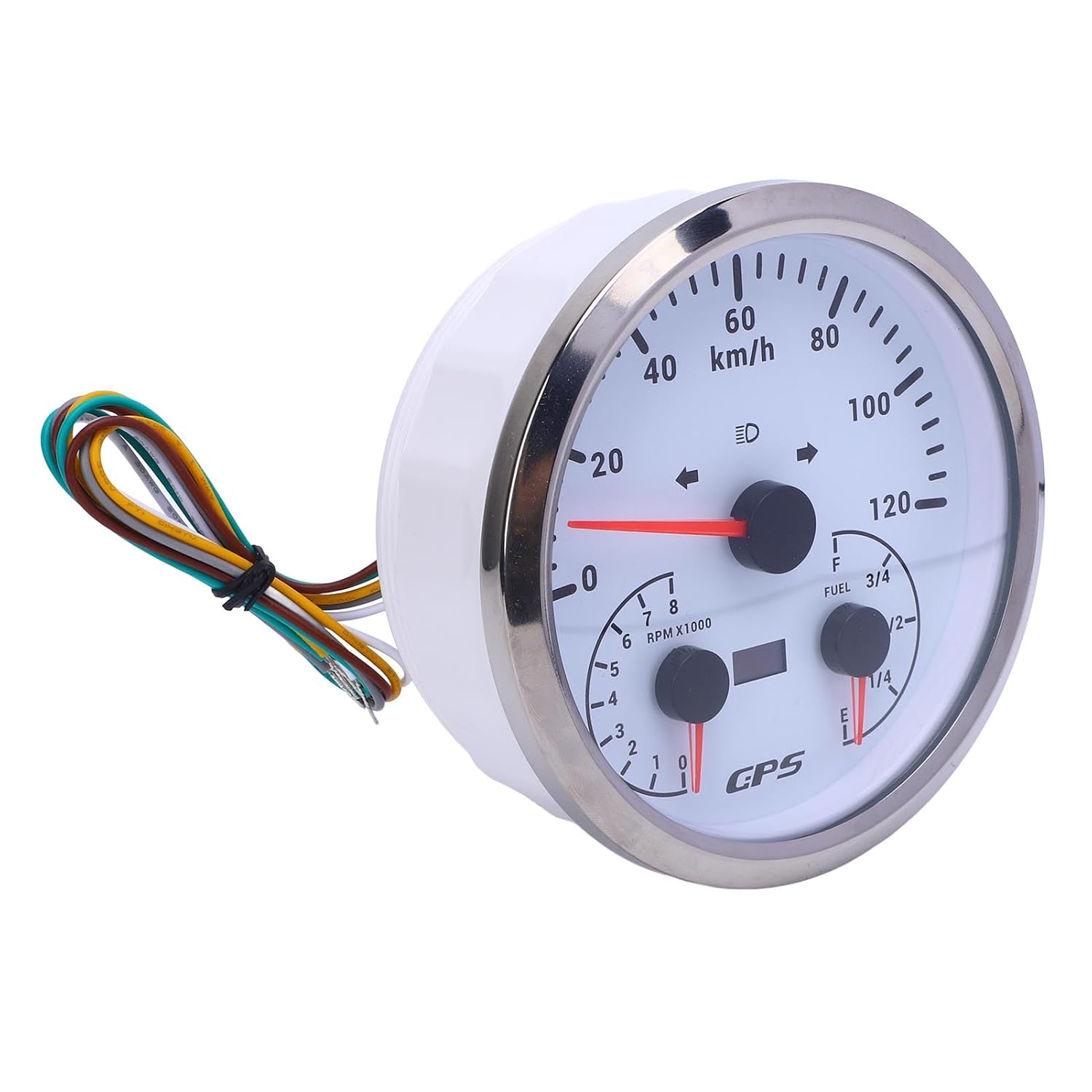

Generic Speedometer, Tachometer, Fuel Gauge 3 in 1 GPS with Red Backlight for RV Yachts Trucks, DC 9 32V, 120 KM H, 8000 RPM, Fit for Motorhomes, Yachts, Trucks (White Dial Silver Bezel CXA096)

Specification: Item Type: GPS Speedometer Tachometer Voltage: DC 9-32V Speedometer Range: 0-120 KM/H Tachometer Range: 0-8000 RPM Fuel Gauge: E 1/4 1/2 3/4 F Backlight Color: Red Fitment: Fit for Motorhomes, Yachts, Trucks How to Use: Wire harness extension on both sides Black = Negative Pole Red = Positive Pole Blue = Speed Signal Yellow = Backlight White = High Beam On the other side Brown = Buzzer (Negative Pole) Green = Fuel Signal Yellow = Left Turn Gray = Right Turn White = Adjustment Package List: 1 x Speedometer 1 x GPS Wiring Harness 1 x User Manual

• 3 in 1 Multi Function Display: The gauge integrates speed, RPM, and fuel level monitoring into one device, offering a compact and efficient solution for boats, yachts, RVs, and trucks.
• Size: Cut a 111 mm (4-3/8in) diameter panel hole. You will need a minimum clearance of 55mm (2-3/16in) behind the panel to fit the gauge. Put the gauge in the hole and screw down.
• Antenna Installation: For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen), so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. Do not cut cable.
• High Precision Readings: With a speed range of 0-120 KM/H and tachometer range of 0-8000 RPM, this GPS speedometer tachometer delivers accurate performance tracking for all your needs.
• Clear Visibility: Featuring a red backlight, this GPS speedometer tachometer ensures easy readability in all conditions, making it a practical choice for day and night use.
