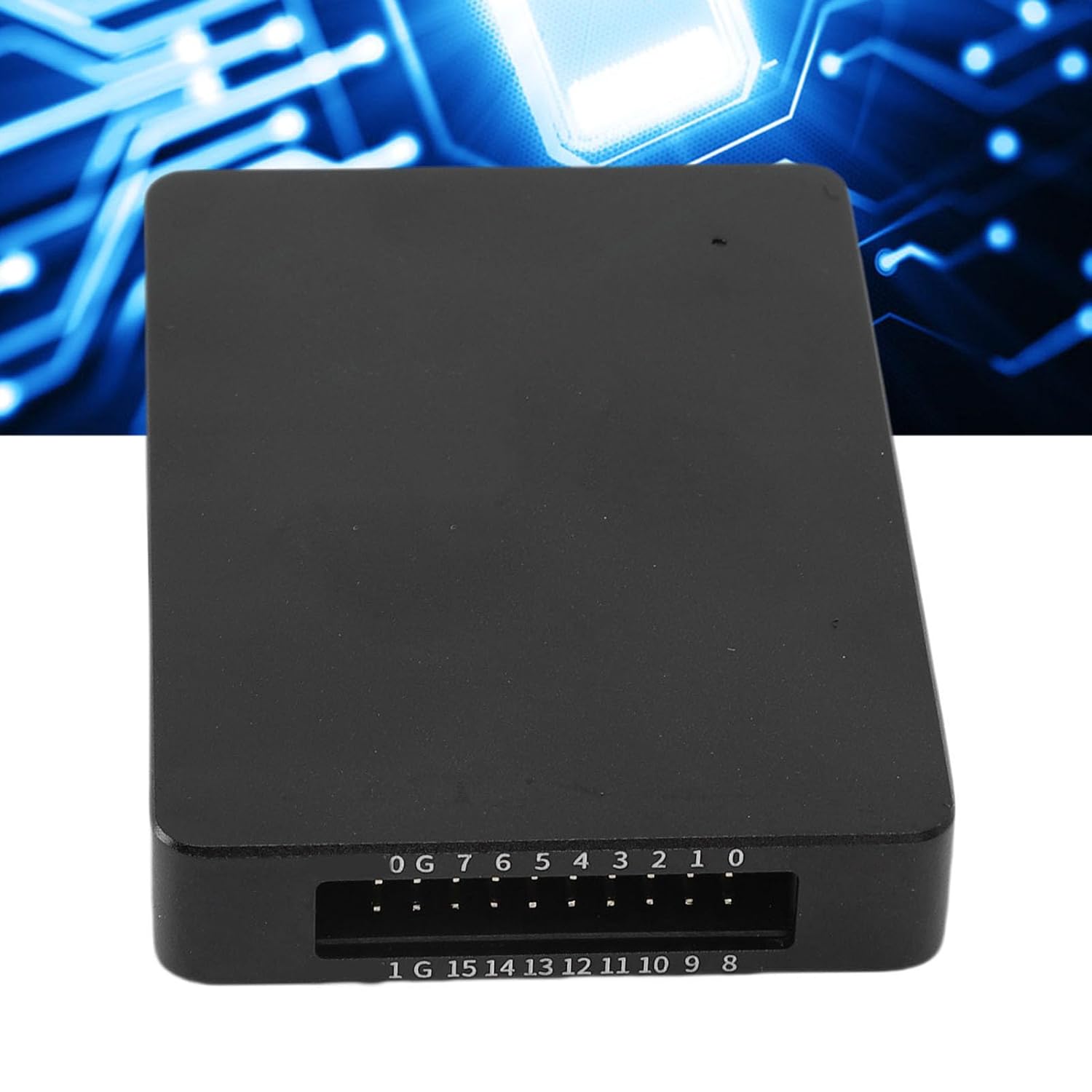

Eujgoov Logic Analyzer Set, DL16 Plus USB 500MHz 1GHz 16 Channel Logic Analyzer Signals Measurement

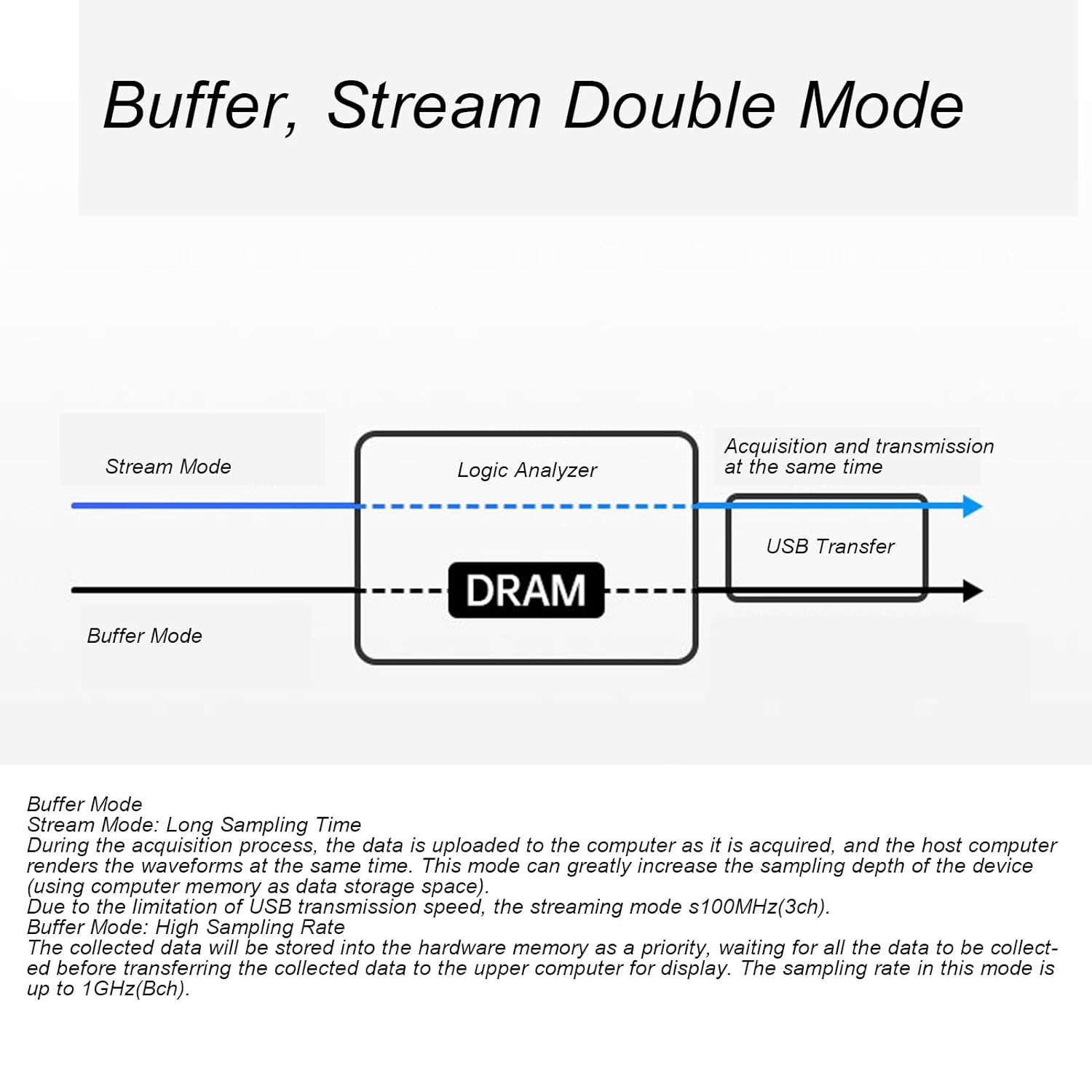

Specification: Item Type: Logic Analyzer Material: ABS Channels: 16ch USB Interface: USB2.0 (Type C, support reversible plug) Maximum Sampling Rate: Buffer: 1GHz (8ch) 500MHz (16ch) Stream: 100MHz (3ch) 50MHz (6ch) 20MHz (16ch) Minimum Detectable Pulse Width: Maximum Detectable Frequency: 200MHz Maximum Hardware Storage Depth: 3.5G(bit) Maximum Sampling Depth: Buffer: 3.5G(bit) ( hardware compression can effectively increase sampling depth) Stream: Depending on the computer's memory size with low sampling rate Data Catch Mode: Buffer (higher sampling rate), Stream (longer sampling time) Catch Accuracy: ± one sampling period Trigger Types: Rising Edging, High Level, Falling Edging, Low Level, Any Edging Protocol Support: for 170+ (open protocol decoding library, can customize any protocol) Input Voltage Tolerance: -40V to +40V Input Impedance: 250K/15pF Threshold Range: -5V to +5V (0.1V steps) Waveform Output: 1Hz to 20MHz (3.3V, non adjustable), supports 2 PWM channels Channel Interface: 2.54mm interface (standard 20 pin horn socket) How to Use: Remove the product for direct use. packing list: 1 x Logic Analyzer 1 x USB Cable Type C 2 x 9 Pin Single Headed to Jump Rainbow Cable 1 x 2 Pin Single Headed to Jump Rainbow Cable 1 x User Manual 1 x Storage Bag

• Universal Compatibility: Seamlessly integrate this logic analyzer into your workflow with compatibility across for Wins to for Wins 10, for OS X, and for Linux. With support for nearly a hundred protocol decoders available on for GitHub, you can easily tackle a diverse range of projects.
• Enhanced Waveform Clarity: Achieve cleaner and more defined waveforms with adjustable thresholds and masking lines. These features reduce noise and improve signal integrity, allowing for more accurate and reliable analysis, no matter the complexity of your signals.
• Massive Storage Depth: Experience data logging capabilities with a staggering storage depth of up to 16G in streaming mode. This ensures you can catch extensive data flows without missing any details in your signal analysis.
• Sampling Rate Performance: Achieve quality analysis with exceptional sampling rates, boasting 1 GHz for 8 channel configurations and 500 MHz for 16 channels. In streaming mode, enjoy with rates of 100 MHz for 3 channels, 50 MHz for 6 channels, and 20 MHz for 16 channels. This remarkable versatility ensures you can handle even the most demanding signal analysis tasks with ease and accuracy.
• Robust Memory and Buffering Options: With 256Mbits of onboard SDRAM, our logic analyzer supports various buffering modes tailored to your testing requirements. This sophisticated memory architecture facilitates smoothly data catch and efficient processing.
