Digital Oscilloscope, Lab Oscilloscopes Multimeter 2 in 1 Dual Channels Signal Generator 100MHz* 2 Bandwidth 1GSa/s Sampling Rate 1GB Storage 7 Inch TFT LCD Display Screen

Specifications: Material: ABS Ana-log band width: 100MHz * 2 Number of channels: 2 channels Maximum real time sampling rate: 1GSa/s Vertical sensitivity: 50 mV/div ~ 500 V/div Horizontal time base range: 50S/div ~ 10nS/div Maximum test voltage: 40 V (1X probe), 400 V (10X probe) Storage depth: 240Kbit Input resistance: 1MΩ ADC precision: 8bits Coupling mode: AC/Direct Current Trigger mode: Single, Normal, Auto Trigger edge: Rising edge/Falling edge External trigger voltage 0~40 V Extension ports: USB picture export Package size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8in Package weight: 1949g / 4.3lb Packing list: 2 * Matching 100MHz Probe (1X and 10X） 1 * Clip 1 * USB Data Line 1 * English User Manual

• 【Signal Generator Versatile Signal Support】Built in DDS signal generator, support 12 kinds of function signal. Capture output signal function, which can store up to 1000 capture signals, making it an incredibly useful and efficient tool.

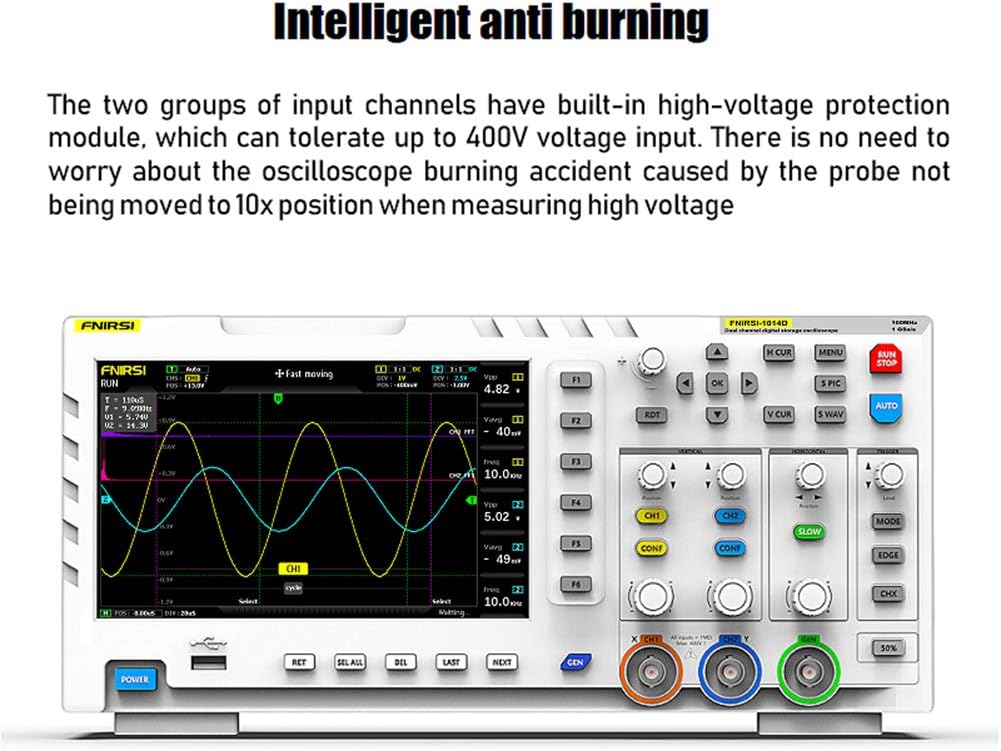

• 【Targeted high intelligent decoding algorithm】The encoderlife is infinite, and intelligent anti-burn function, 1X Can withstand up to 400V withstand voltage. High measurement voltage range: 1X can measure 0~40 V, 10X can measure 0~400V.
• 【One-button AUTO】With 100MHz * 2 ana-log bandwidth and @ 1GSa/s sampling rate（1X = 5MHz, 10X = 100MHz). Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data. Equipped with high efficiency One-button AUTO, and one-button waveform storage and screenshot function.
• 【LCD display】Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast. Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc..
• 【FFT display function】Can analyze the spectral characteristics of the signal, memory technology, waveform refresh screen does not flicker. With the screen brightness adjustment function and background gr-id brightness adjustment function, also easy to carry. Equipped with a USB interface, which can be connected to computer.
