(2PCS) A11CSQ12VDC1.5R Relay Automotive SPDT 30A 12V
4.1 (36 items)
Limited Time SaleUS$17.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 239313972 | Release Date | 2026/07/14 | List Price | US$11.60 | Model Number | 239313972 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

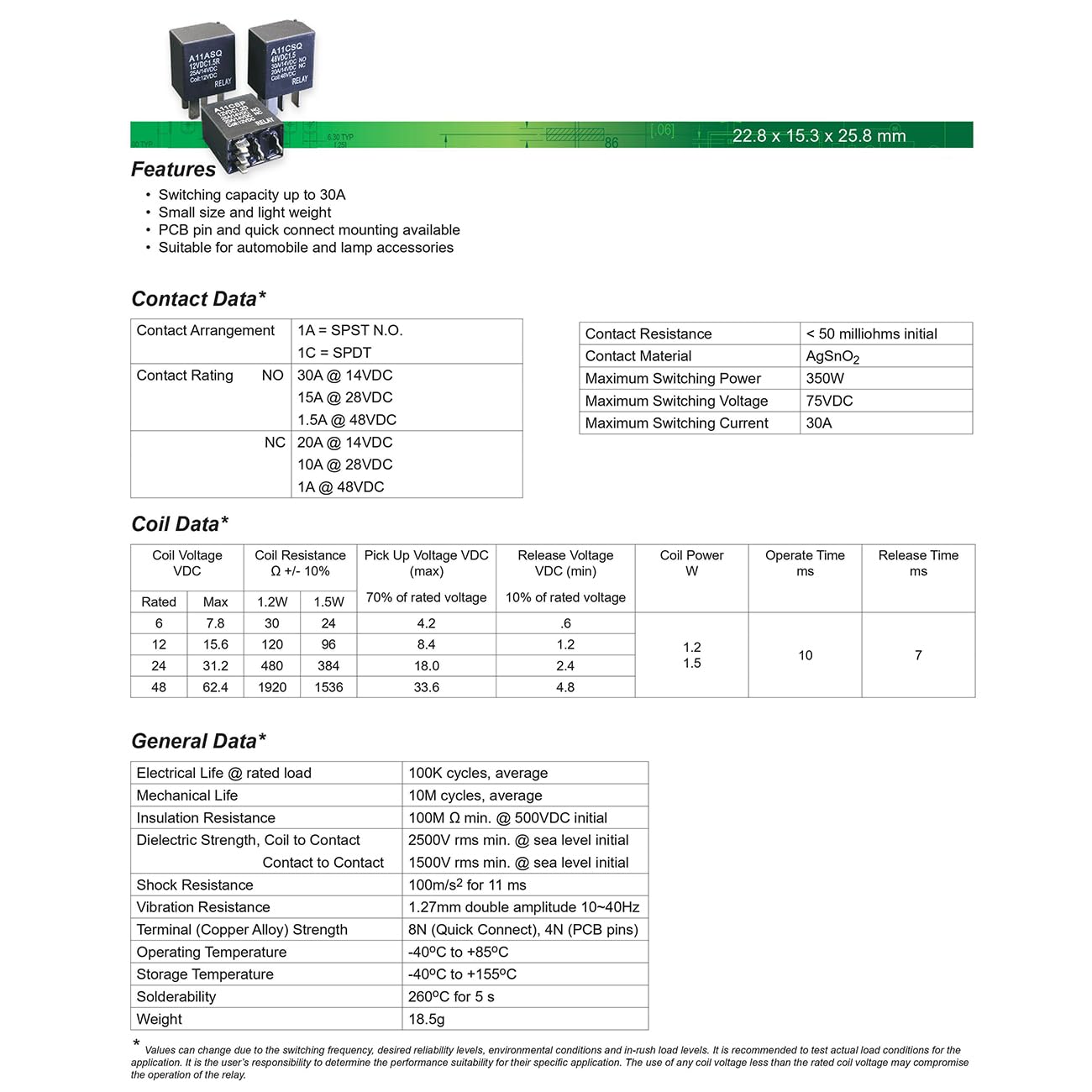

Coil Current 125 mA Coil Voltage 12VDC Contact Form SPDT (1 Form C) Contact Rating (Current) 30 A Switching Voltage 75VDC - Max Must Operate Voltage 8.4 VDC Must Release Voltage 1.2 VDC Operate Time 10 ms Release Time 7 ms Features Resistor, Sealed - Fully Mounting Type Socketable Termination Style Plug In, Quick Connect - 0.187" (4.7mm) Operating Temperature -40°C ~ 85°C Contact Material Silver Tin Oxide (AgSnO) Coil Power 1.5W Coil Resistance 96 Ohms
- Coil Current 125 mA
- Coil Voltage 12VDC
- Contact Rating (Current) 30 A
- Must Release Voltage 1.2 VDC
- Coil Resistance 96 Ohms
| ASIN | B0CKSXJ4B8 |
|---|---|
| Wattage | 1.5 watts |
| Brand Name | Rizees |
| Part Number | 2449-A11CSQ12VDC1.5R-ND |
| Coil Voltage | 12 Volts |
| Contact Type | Spdt |
| Manufacturer | Rizees |
| Mounting Type | Plug In Mount |
| Connector Type | Quick Connect |
| Current Rating | 30 Amps |
| Operation Mode | Automatic |
| Coil Resistance | 96 Ohms |
| Specification Met | Ma, Ms |
| Included Components | A11CSQ12VDC1.5R |
| Upper Temperature Rating | 85 Degrees Celsius |
| Maximum Switching Current | 30 Amps |
| Maximum Switching Voltage | 75 Volts |
