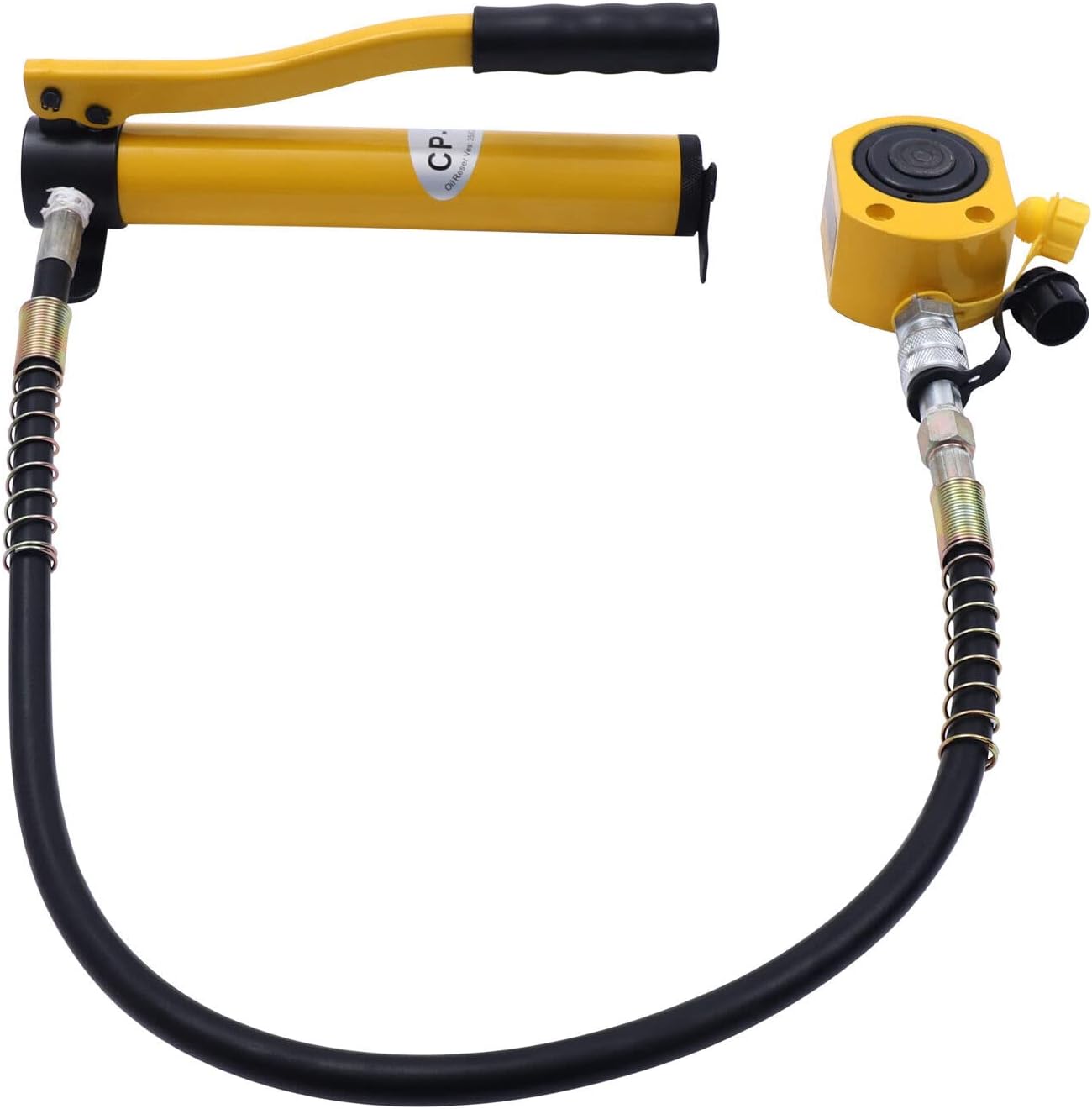

20Ton 0.47"(12mm) Stroke Hydraulic Cylinder Jack kit with 60MPa CP-180 Manual Hydraulic Pump, Low Profile Hydraulic Ram Jack Pancake Hydraulic Jack for Machinery, Bridge, Construction

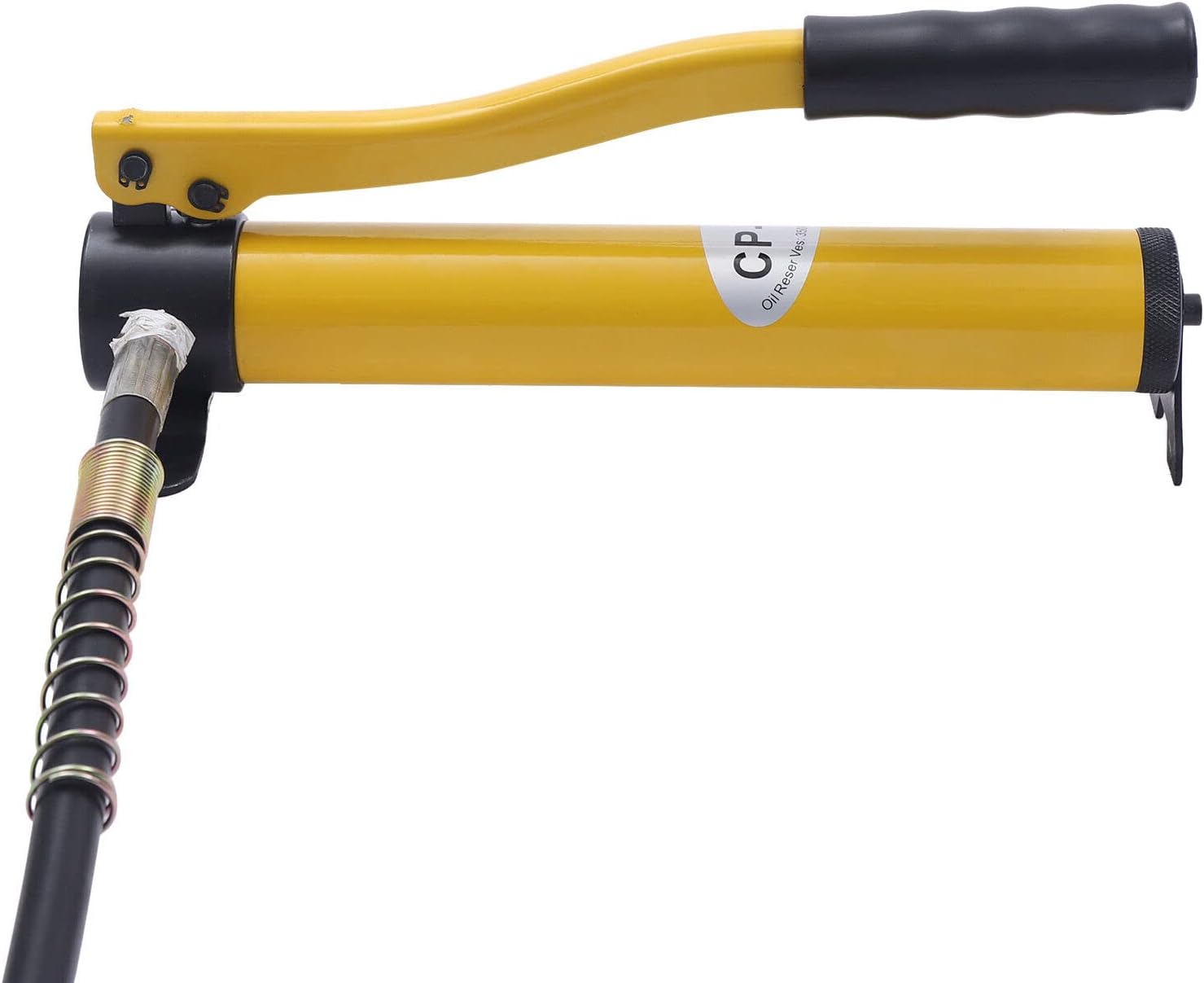

SpecificationsPump Model: CP-180High Pressure: 60MPaPump Oil Storage: 350CC (0.37Qt)Tubing Length: 80cm (31.5inch)Tonnage: 20T (44092lb)Retracted Jack Height: 56mm (2.2 inch)Extended Jack Height: 88mm (3.46 inch)Stroke: 12mm (0.47inch)Color: YellowApplication: Electric Power, Chemical, Steel, Bridge, Machinery and Other IndustriesFunction: Lifting, Jacking, Shoveling and Splitting Heavy ThingDimensions: 33x19x20cm (13x7.5x7.9inch)Weight: 7kg (15.4lb)Features & HighlightsRELIABLE QUALITY: The hydraulic pump consists of zg 3/8 joint, non-slip handle, hydraulic pump body, release valve and hose. Our product is not only smooth in surface, but also leak-proof. At the same time, non-slip handle is more comfortable to use.THOUGHTFUL DESIGN: The ultra-thin design and the compact body are more suitable for narrow spaces. The body of this low profile hydraulic jack is only 2.2 inches high, but with a stroke of up to 12mm, it is small but powerful. In addition, compared with ordinary jacks, ultra-thin jacks can be used in narrower and lower spaces.ADVANCED MATERIAL: The hydraulic cylinder jacks are made of heavy duty metal for durability. The surface of the hydraulic cylinder is painted with lacquert, which is not easy to rust. In addition, we also have a dust ring to reduce pollution, thereby extending the life of the hydraulic cylinder.Pakage Content1x Hydraulic Jack1x CP-180 Manual Hydraulic Hand Pump

• 【Wide Applications】- VONZOER Low profile hydraulic jack is versatile and has reliable quality, it is widely used in electric power, steel, bridge, machinery, chemical and other industries, suitable for railway vehicle maintenance, mechanical installation, construction engineering support, etc.
• 【Strong Power】- The retracted height of the hydraulic jack is only 2.2 inches, but with stroke of 12mm(0.47inch) and tonnage of 20Ton(44092lb), strong enough to meet your needs. Ultra-thin and compact body is more suitable for narrow and low spaces. The max pressure of the pump can reach 70Mpa, enough for your use. With good sealing and no oil leakage.
• 【High Safety】- Chrome plated main shaft of the jack is smooth and not easy to jam the cylinder, designed with an anti-slip ring to realize better anti-slip and wear resistance; A stop ring between the main shaft and the housing protects jack from breakage and damage under load.
• 【Sturdy & Durable】- Both the jack and pump are made of high-quality tool steel, with good impact resistance and wear resistance, not easy deformed, and the coated surfaces are not easy to rust. 【Note】The cylinders need to be connected with solid and flat surfaces, otherwise it will cause damage to the cylinders.

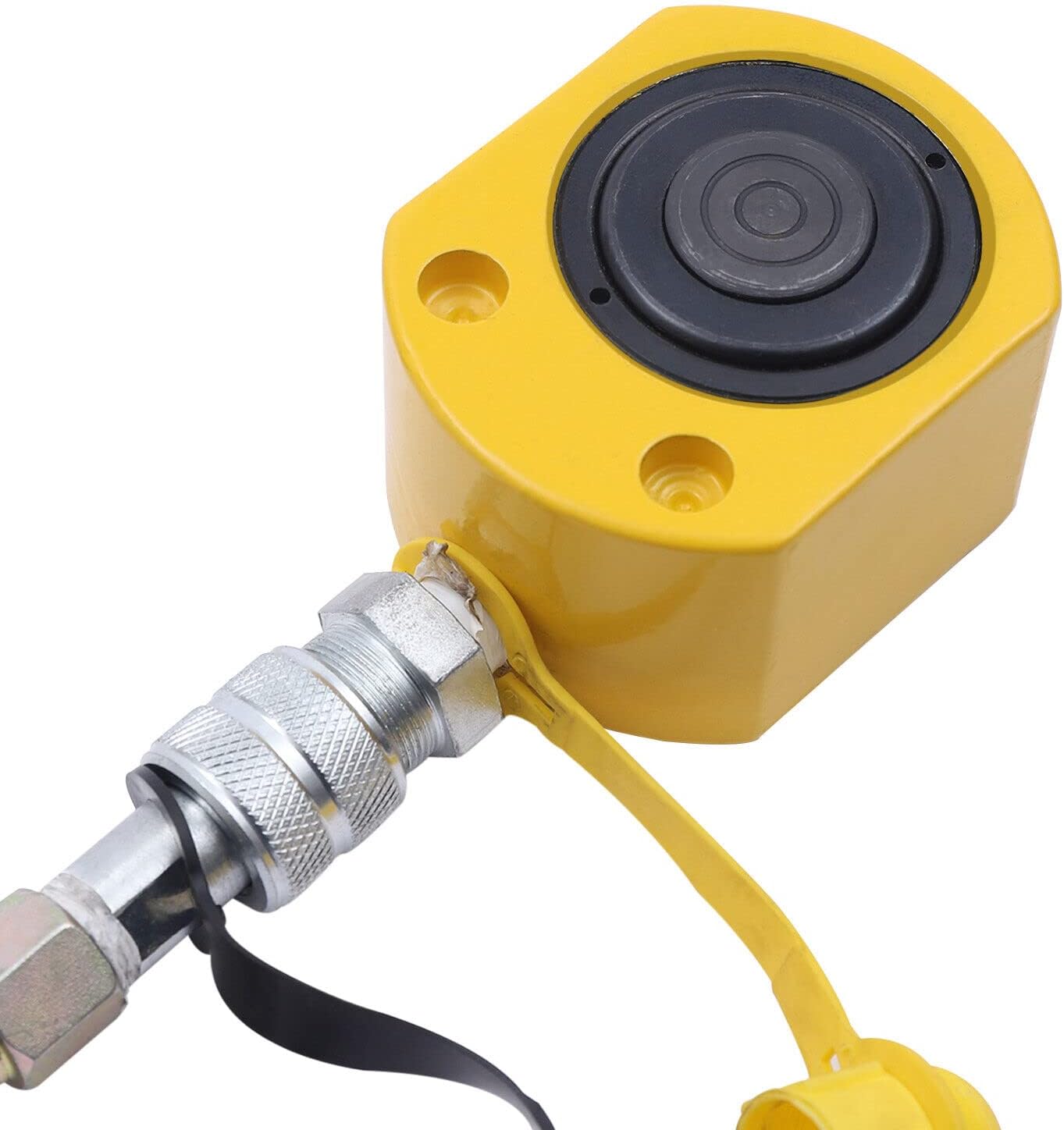

• 【Protective Parts】- The oil pipe joint is surrounded with steel wire to avoid damage; The thickened plunger increases its wear resistance; The joints of the jack and hydraulic pump are designed with a dust cover to avoid dust; High-pressure oil pipe and attached quick joint(ZG3/8''), convenient to use.

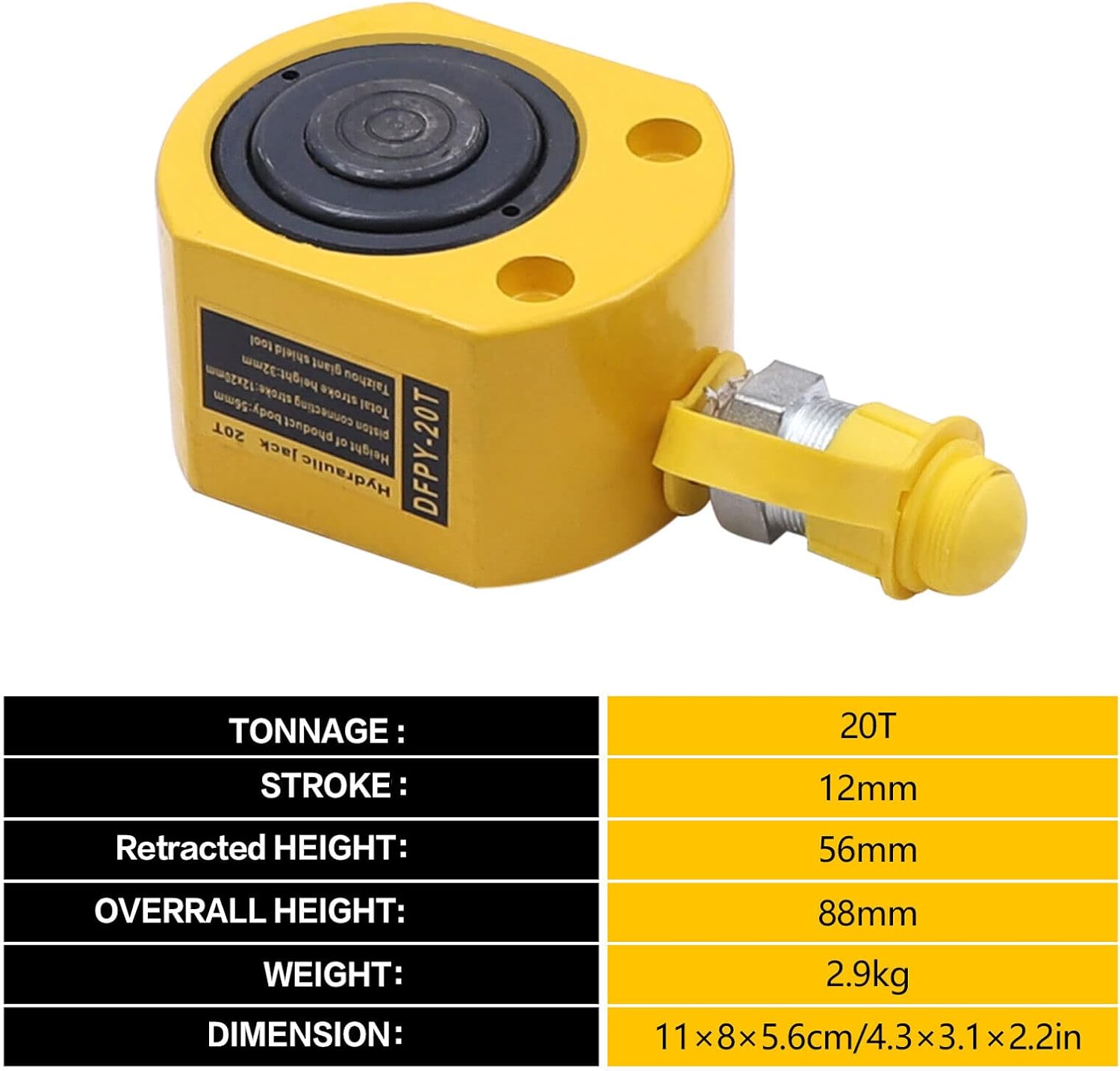

• 【Main Parameters】- Pump Model: CP-180; High Pressure: 60MPa; Pump Oil Storage: 350CC (0.37Qt); Tubing Length: 80cm (31.5inch); Tonnage: 20T (44092lb); Stroke: 12mm (0.47inch); Retracted Jack Height: 56mm (2.2 inch); Extended Jack Height: 88mm(3.46 inch); Size: 33x19x20cm (13x7.5x7.9inch); Weight: 7kg (15.4lb)
• 【How to Use】-1. Connect the jack to the quick coupler of the hydraulic pump; 2. Turn the pressure relief valve on the hydraulic pump clockwise; 3. Press the handle up and down; 4. Stop working when the stroke is in place; 5. Turn the relief valve counterclockwise.
